Product Overview

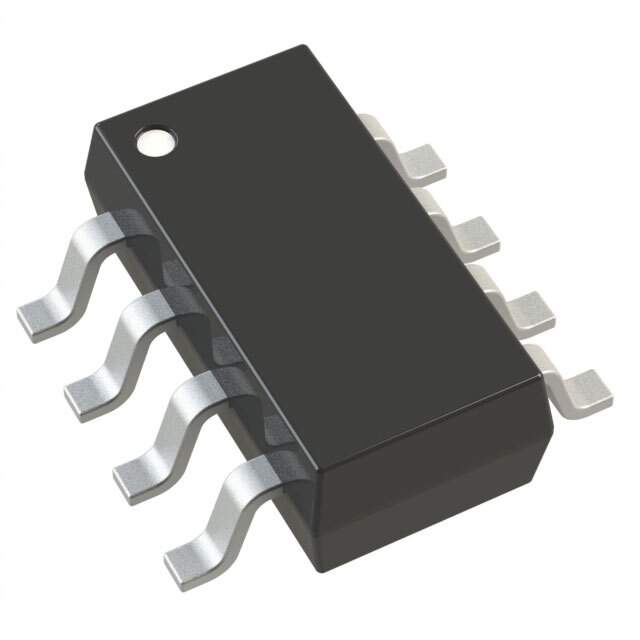

The LTC2315ITS8-12#TRPBF is a high-performance, 12-bit, 500ksps, serial sampling Analog-to-Digital Converter (ADC) from Linear Technology, now part of Analog Devices. This compact, low-power device is ideal for a wide range of applications, including portable equipment, medical devices, industrial instrumentation, and communications systems. Its small form factor and high-speed capabilities make it a versatile choice for designers looking to optimize their systems for speed and power efficiency.

Key Features

• High Resolution: With its 12-bit resolution, the LTC2315ITS8-12#TRPBF offers precise digital representation of analog signals, ensuring accurate readings and high-quality data conversion.
• Fast Conversion Rate: The ADC provides a fast sampling rate of up to 500ksps (kilo-samples per second), which is suitable for capturing rapidly changing signals without sacrificing accuracy.
• Low Power Consumption: Designed with power-sensitive applications in mind, the LTC2315ITS8-12#TRPBF consumes only 1.4mA of supply current when active and features a nap and sleep mode for further power savings when the ADC is not in use.
• No Pipeline Delay: This ADC offers the advantage of no latency or pipeline delay, which is critical for control loop applications and systems that require immediate data processing.
• Single 2.7V to 5.5V Supply: Operating from a single supply voltage in the range of 2.7V to 5.5V, this ADC simplifies the power supply design and is compatible with a variety of logic levels.
• Small Package: Housed in a tiny TSOT-23 package, the LTC2315ITS8-12#TRPBF is designed for space-constrained applications, providing high performance in a minimal footprint.
• SPI Interface: The device features a serial peripheral interface (SPI) that enables easy communication with a wide range of microcontrollers and digital systems.

Applications

The LTC2315ITS8-12#TRPBF is well-suited for applications that require high-speed, precise data acquisition, such as:

• Portable Instrumentation
• Medical Devices
• Data Acquisition Systems
• Industrial Process Control
• Automotive Systems

With its combination of speed, precision, and low power usage, the LTC2315ITS8-12#TRPBF is an excellent choice for designers looking to enhance the performance of their data acquisition systems while maintaining a compact and efficient design.
