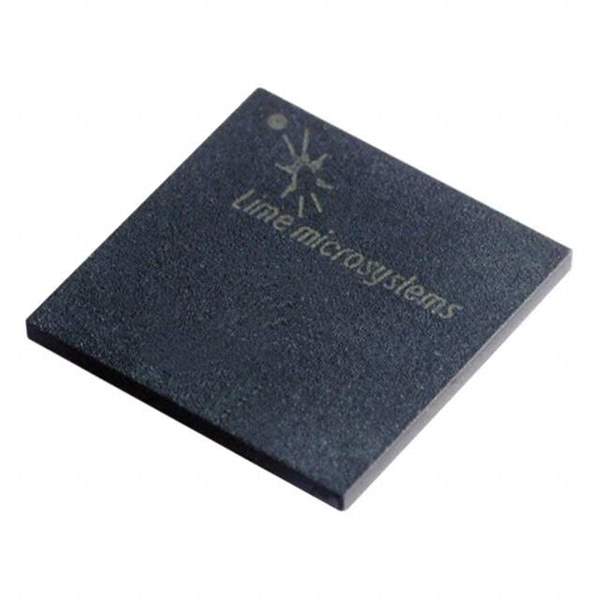

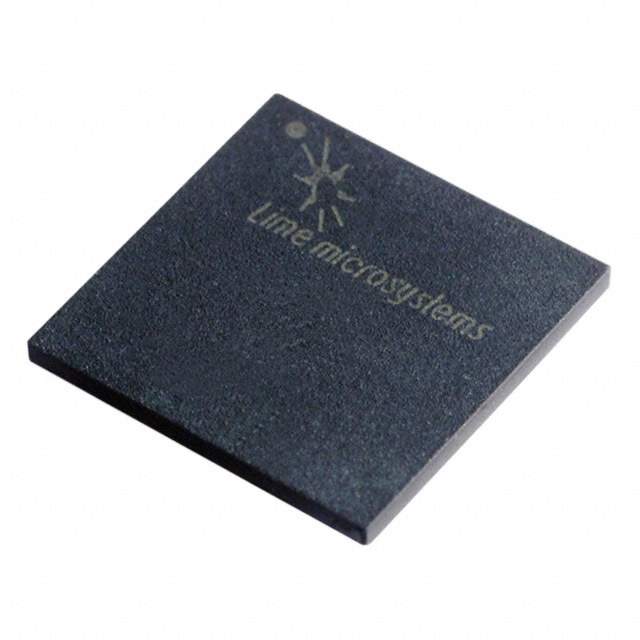

LMS6002DFN Real Image
Same model may have multiple batches, images only for reference.

LMS6002DFN

Part No LMS6002DFN
Manufacturer Lime Microsystems Ltd
Catalog RF Transceiver ICs
Description IC RF TXRX CELLULAR 120-VFQFN
Datasheet
LMS6002DFN Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer Lime Microsystems Ltd
Packaging Reel package
Type TxRx Only
RF Family/Standard Cellular
Protocol CDMA, GSM, HSPA, LTE, WCDMA
Frequency 300MHz ~ 3.8GHz
Power - Output 6dBm
Serial Interfaces SPI
Operating Supply Voltage 1.7 V ~ 3.5 V
Current - Receiving 220mA
Current - Transmitting 280mA
Operating Temperature Range -40°C ~ 85°C
Package 120-VFQFN Dual Rows, Exposed Pad
Win Source Part Number 779555-LMS6002DFN
Family Name LMS6002DFN
Introduction Date November 29, 2012
Estimated EOL Date 2023
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Quantity per package 250
Ultra Librarian 3D Model Ultra Librarian LMS6002DFN CAD Model

Description

The LMS6002DFN is a TxRx only RF transceiver from Lime Microsystems Ltd.

  • Frequency Range: 300MHz ~ 3.8GHz
  • Protocols: CDMA, GSM, HSPA, LTE, WCDMA
  • Power Output: 6dBm
  • Sensitivity: - dBm
  • Operating Supply Voltage: 1.7 V ~ 3.5 V
  • Receiving Current: 220mA
  • Transmitting Current: 280mA
  • Package: 120-VFQFN dual rows, exposed pad
  • Interface: SPI
