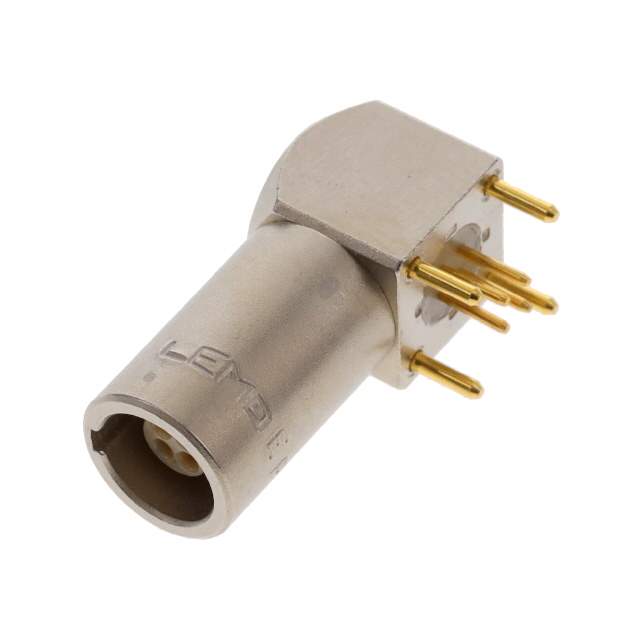

EPG.00.304.NLN Real Image
Same model may have multiple batches, images only for reference.

EPG.00.304.NLN

Part No EPG.00.304.NLN
Manufacturer LEMO
Catalog Circular Connectors - Assemblies
Description CONN RCPT FMALE 4POS GOLD SOLDER / 4 Position Circular Connector Receptacle, Female Sockets Solder
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Circular Connectors - Circular Connector Assemblies
Mfr LEMO
Series 00B
Package Bulk
Connector Type Receptacle, Female Sockets
Number of Positions 4
Shell Size - Insert 304
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Push-Pull
Orientation G
Primary Material Metal
Shell Material Brass
Shell Finish Nickel
Contact Finish - Mating Gold
Color Silver
Ingress Protection IP50 - Dust Protected
Material Flammability Rating UL94 V-0
Features Ground
Shielding Shielded
Current Rating (Amps) 2A
Temperature Range - Operating -55°C ~ 250°C
Contact Material Bronze
Contact Finish Thickness - Mating 59.0µin (1.50µm)
Insert Material Polyetheretherketone (PEEK)
Base Product Number EPG.00.304
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4020
California Prop 65 Warning Information
Win Source Part Number 1352056-EPG.00.304.NLN
Ultra Librarian 3D Model Ultra Librarian EPG.00.304.NLN CAD Model

Description

The LEMO 1167340 is a circular connector assembly that belongs to the 00B series.

  • Number of Positions: 4
  • Color: Silver
  • Connector Type: Receptacle, Female Sockets
  • Fastening Type: Push-Pull
  • Packaging: Bulk
  • Shielding: Shielded
  • Material Flammability Rating: UL94 V-0
  • Orientation: G
  • Mounting Type: Through Hole, Right Angle
  • Operating Temperature: -55°C ~ 250°C
  • Shell Material: Brass
  • Shell Finish: Nickel
  • Insert Material: Polyetheretherketone (PEEK)
  • Current Rating (Amps): 2A
