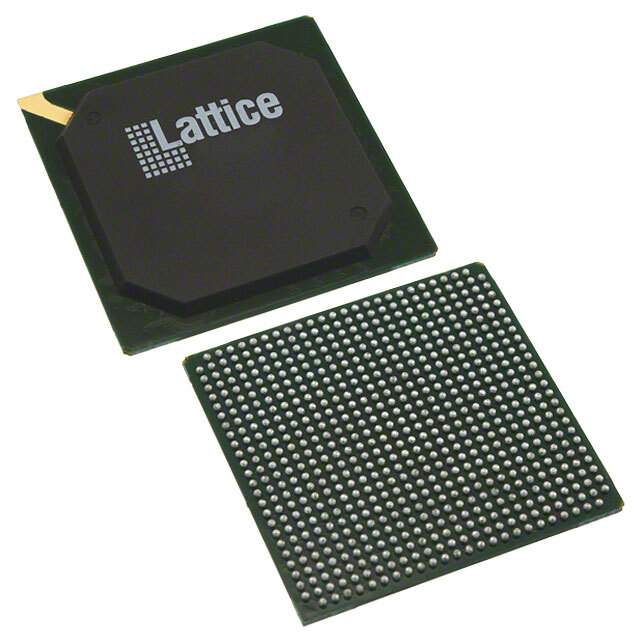

The LFE3-70EA-8FN672I is a Field Programmable Gate Array (FPGA) from the Lattice ECP3 family. It's designed for high-performance, low-power applications requiring flexible and reconfigurable logic. This FPGA offers a balance of logic density, memory resources, and I/O capabilities.

Applications:

• Video processing
• Image processing
• Industrial automation
• Networking and communications
• Embedded systems

Features:

• 68,000 Logic Cells
• 6.6 Mbits of Embedded Memory
• 672-pin Fine-Pitch Ball Grid Array (FBGA) package
• High-speed SERDES (Serializer/Deserializer) transceivers
• DDR2/DDR3 Memory Interfaces
• PCIe (Peripheral Component Interconnect Express) support
• Low power consumption
• In-System Programmable (ISP)

Benefits:

• High Performance: Abundant logic resources and high-speed interfaces enable complex designs.
• Flexibility: Programmability allows for design changes and updates in the field.
• Low Power: Reduces overall system power consumption.
• Integrated Features: SERDES, DDR interfaces, and PCIe support simplify system design.
• Large Memory Capacity: Ample embedded memory for data storage and processing.

Additional Details:

The LFE3-70EA-8FN672I is programmed using Lattice's Diamond design software. The '70EA' indicates the logic density within the ECP3 family. The '-8' denotes the speed grade. The 'FN672' specifies the package type and pin count. The 'I' at the end denotes Industrial temperature grade. It supports various I/O standards, including LVTTL, LVCMOS, and differential signaling. The integrated SERDES transceivers enable high-speed serial communication. Refer to the Lattice Semiconductor datasheet for detailed electrical specifications, timing diagrams, programming instructions, power consumption information, and thermal management guidelines.

The ECP3 family is known for its low power consumption and cost-effectiveness. The large number of logic cells and embedded memory make it suitable for a wide range of applications. The device supports various configuration options, including SPI and parallel flash memory. The FBGA package requires careful PCB layout and assembly techniques. Power supply decoupling and signal integrity are critical for ensuring proper device operation.
