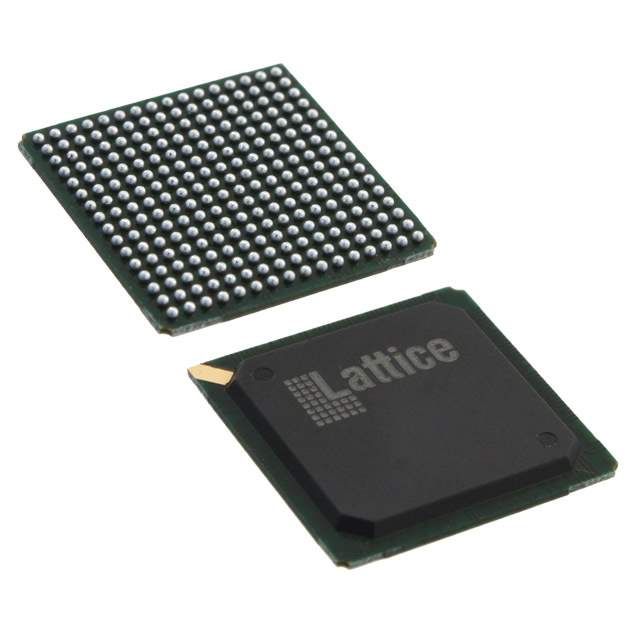

The LFE2-12SE-5FN256C is a Field Programmable Gate Array (FPGA) from the LatticeECP2 series manufactured by Lattice Semiconductor Corporation. This FPGA offers a combination of high performance, low power consumption, and a rich feature set, making it suitable for a variety of applications. The device is housed in a 256-pin Fine-Pitch Ball Grid Array (FBGA) package and is designed for commercial temperature ranges.
Applications:
- Industrial Control Systems: Implements custom control logic for machinery and automation equipment.
- Embedded Systems: Used as a core component in embedded systems for signal processing and control.
- Image Processing: Performs real-time image processing tasks such as filtering, enhancement, and object detection.
- Communication Systems: Facilitates high-speed data communication protocols and interfaces.
- Consumer Electronics: Integrated into various consumer electronics devices for customized functionality.
Features:
- 12K Look-Up Tables (LUTs): Provides ample logic resources for complex digital designs.
- Embedded Memory: Includes on-chip memory blocks for efficient data storage and retrieval.
- High-Speed I/Os: Features flexible I/O interfaces supporting various communication standards.
- DSP Blocks: Equipped with dedicated Digital Signal Processing (DSP) blocks for high-performance arithmetic operations.
- Low Power Consumption: Designed for efficient power management in portable and energy-sensitive applications.
Benefits:
- Flexibility: Allows for custom hardware implementation tailored to specific application requirements.
- Performance: Delivers high-speed processing capabilities for real-time applications.
- Integration: Combines logic, memory, and DSP resources in a single device.
- Time-to-Market: Enables rapid prototyping and development cycles.
- Cost-Effectiveness: Provides a cost-optimized solution compared to custom ASIC designs.
Additional Details:
The LFE2-12SE-5FN256C operates with a core voltage of 1.2V and supports a wide range of I/O voltages. It features advanced clock management circuitry for precise timing control. The device is supported by Lattice's design software, which provides a comprehensive suite of tools for design entry, synthesis, place-and-route, and simulation. This FPGA is commonly used in applications requiring high performance, low power, and flexible I/O connectivity. The ECP2 series is known for its balanced architecture and robust feature set, making it a popular choice for a wide range of digital designs.
