The LCMXO2-7000HC-5BG256I is a Field Programmable Gate Array (FPGA) from Lattice Semiconductor's MachXO2 family. This FPGA is designed for high-performance, low-power applications, offering a versatile solution for a wide range of digital logic implementations. The device is characterized by its instant-on capability, small footprint, and cost-effectiveness.

Applications:

• Industrial Control: Used in programmable logic controllers (PLCs) and other industrial automation equipment to implement custom control algorithms.
• Consumer Electronics: Employed in set-top boxes, digital TVs, and other consumer devices to handle video processing, audio decoding, and system control functions.
• Communications Equipment: Found in routers, switches, and base stations to implement custom communication protocols and data processing functions.
• Automotive Systems: Used in infotainment systems, advanced driver-assistance systems (ADAS), and engine control units (ECUs) to provide real-time processing and control capabilities.
• Medical Devices: Integrated into diagnostic equipment, patient monitoring systems, and other medical devices to perform signal processing and control functions.

Features:

• 6864 Look-Up Tables (LUTs): Provides a significant amount of programmable logic resources for implementing complex digital circuits.
• 256 I/O Pins: Offers a large number of input/output pins for interfacing with various external devices and systems.
• Embedded Block RAM: Includes embedded block RAM for on-chip data storage, reducing the need for external memory.
• High-Speed I/O Interfaces: Supports high-speed interfaces such as LVDS, allowing for fast data transfer rates.
• Low Power Consumption: Designed for low-power operation, making it suitable for battery-powered and energy-sensitive applications.

Benefits:

• Flexibility and Customization: Allows designers to implement custom logic functions tailored to their specific application requirements.
• Reduced Development Time: FPGAs enable rapid prototyping and design iterations, reducing the time to market for new products.
• Increased System Integration: Facilitates the integration of multiple functions into a single chip, reducing board space and system complexity.
• Improved Performance: Offers high-speed performance and parallel processing capabilities, enabling faster and more efficient system operation.
• Cost-Effectiveness: Provides a cost-effective solution for implementing custom logic functions compared to discrete components or ASICs (Application-Specific Integrated Circuits).

Additional Details:

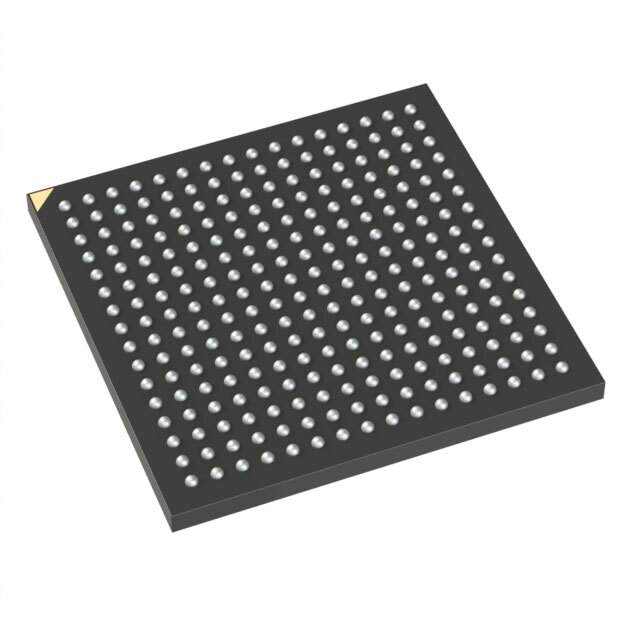

The LCMXO2-7000HC-5BG256I is available in a 256-ball BGA (Ball Grid Array) package. It operates over an industrial temperature range, making it suitable for harsh environments. The device is programmed using Lattice's Diamond design software, which provides a comprehensive set of tools for design entry, simulation, and implementation. Detailed technical specifications, including timing parameters, power consumption data, and I/O characteristics, can be found in the device datasheet provided by Lattice Semiconductor.
