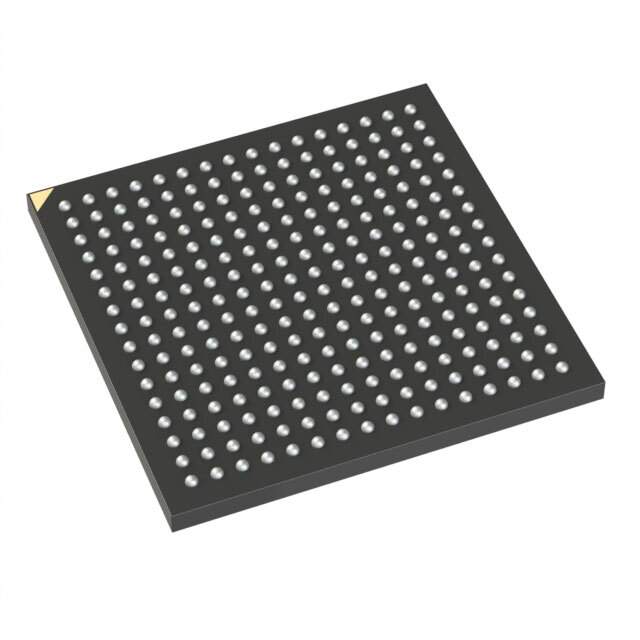

The LCMXO2-4000HC-5BG256I is a Field Programmable Gate Array (FPGA) from Lattice Semiconductor's MachXO2 family. It offers a cost-effective and versatile solution for a wide array of logic applications. This particular device is housed in a 256-ball BGA package and is known for its low power consumption and high performance.

Applications

• Consumer electronics: Suitable for use in set-top boxes, digital TVs, and gaming consoles.
• Industrial control: Utilized in programmable logic controllers (PLCs), motor control systems, and industrial automation equipment.
• Communications: Employed in networking equipment, switches, and routers.
• Medical devices: Found in diagnostic equipment, patient monitoring systems, and imaging devices.
• Automotive applications: Can be used in infotainment systems, advanced driver-assistance systems (ADAS), and body control modules.

Features

• 4320 Look-Up Tables (LUTs): Provides ample logic resources for complex digital designs.
• 640 Kbits Embedded Block RAM: Offers on-chip memory for data storage and processing.
• 270 MHz Maximum System Speed: Enables high-speed operation for demanding applications.
• Advanced I/O Support: Supports a variety of I/O standards, including LVCMOS, LVTTL, and differential signaling.
• Pre-Engineered Source Synchronous I/O: Simplifies interface design with external memory and peripherals.
• On-Chip Oscillator: Reduces the need for external clock sources.
• sysMEM Embedded Memory Block: Provides flexible memory configurations.
• sysIO Interface: Allows for versatile I/O configurations.
• IEEE Standard 1149.1 Boundary Scan: Facilitates device testing and debugging.
• Low Power Consumption: Optimizes power efficiency for battery-powered applications.

Benefits

• Flexibility: The FPGA architecture allows for reconfigurability, enabling design changes and updates even after deployment.
• High Performance: The device's high speed and abundant logic resources allow for the implementation of complex algorithms and data processing tasks.
• Low Power: The low power consumption makes it suitable for portable and battery-powered applications.
• Cost-Effectiveness: Offers a competitive price point for medium-density FPGA applications.
• Rapid Prototyping: Enables quick design iterations and faster time-to-market.
• Integration: Can integrate multiple discrete components into a single device, reducing board space and system complexity.

Additional Details

The LCMXO2-4000HC-5BG256I operates within an industrial temperature range, typically -40°C to +85°C. The supply voltage is typically 1.2V. It is programmed using industry-standard JTAG programming interfaces. The device is supported by Lattice's Diamond design software, which provides a comprehensive suite of tools for design entry, synthesis, place and route, and simulation.

The 256-ball BGA package offers a compact footprint, enabling high-density board designs. The device is RoHS compliant, ensuring environmental friendliness.
