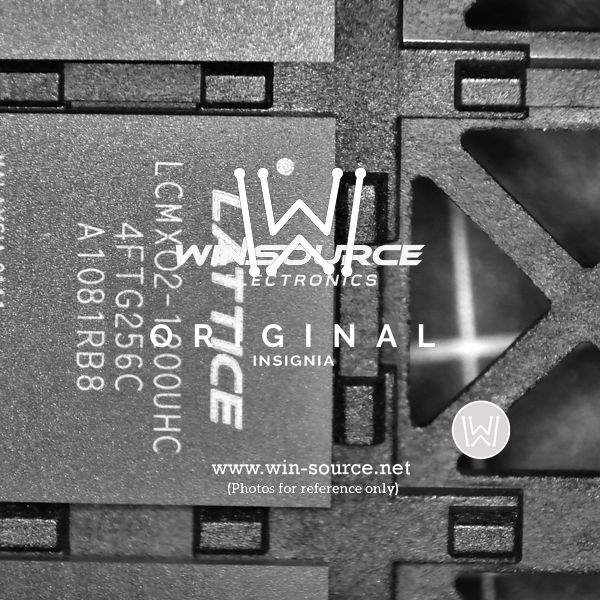

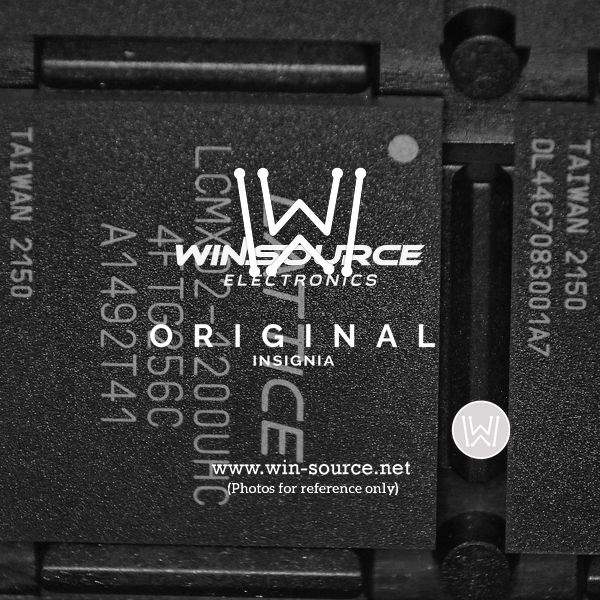

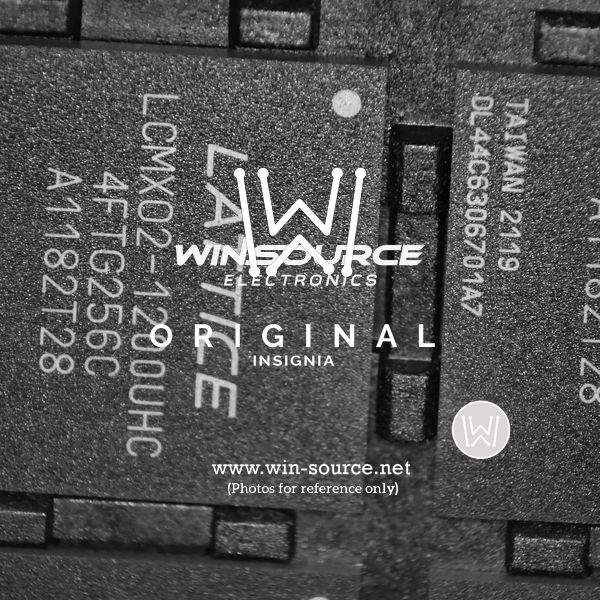

The LCMX02-1200UHC-4FTG256C is a Field-Programmable Gate Array (FPGA) from Lattice Semiconductor Corporation, belonging to the MachXO2 family. These FPGAs are known for their low power consumption, instant-on capabilities, and small footprint, making them ideal for a wide range of applications.

Applications

• Consumer electronics
• Industrial control
• Medical devices
• Automotive applications
• Bridging and interface solutions

Features

• 1200 LUT4s (Look-Up Tables)
• 64kb Embedded Block RAM
• User Flash Memory
• sysIO buffers
• Advanced I/O features
• 256-ball ftBGA package

Benefits

• Low power consumption extends battery life in portable devices.
• Instant-on capability enables rapid system startup.
• Small footprint saves board space.
• Flexibility to implement custom logic functions.
• Integrated features reduce the need for external components.

Technical Specifications

The LCMX02-1200UHC-4FTG256C operates at 1.2V and features 1200 LUT4s and 64kb of embedded block RAM. It supports a wide range of I/O standards and is available in a 256-ball ftBGA package. The device is programmed using standard JTAG programming interfaces. It is designed for operation in commercial temperature ranges. More detailed specifications can be found in the Lattice Semiconductor datasheet.
