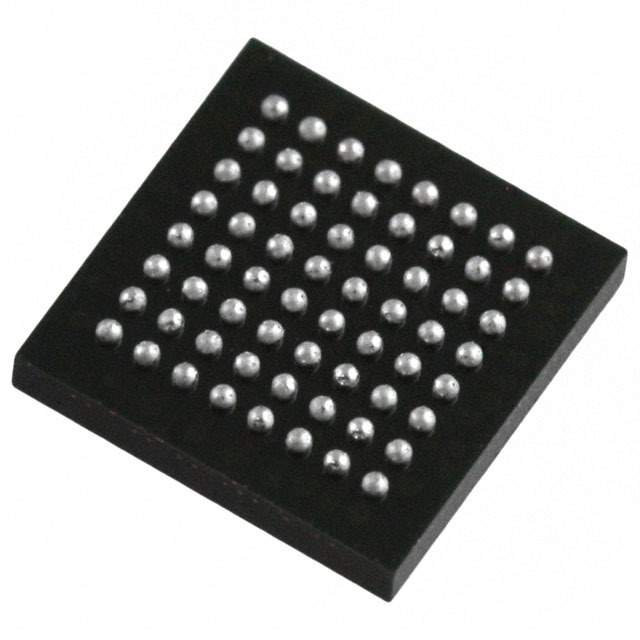

Same model may have multiple batches, images only for reference.

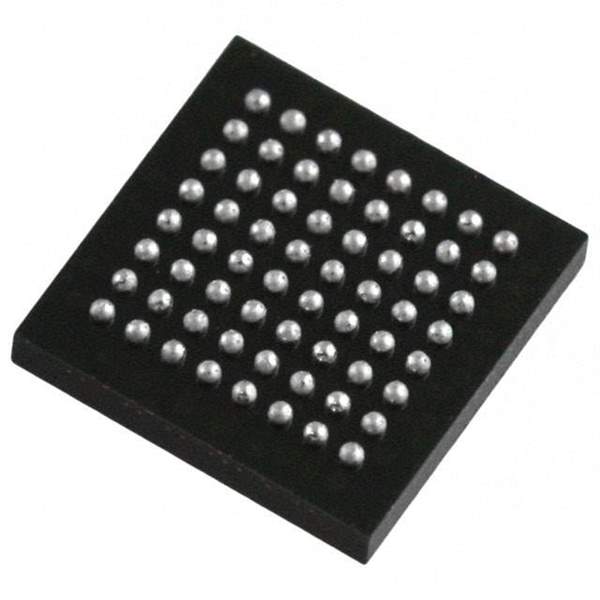

LC4064ZE-7MN64C Real Image
Same model may have multiple batches, images only for reference.

LC4064ZE-7MN64C

Part No LC4064ZE-7MN64C
Manufacturer Lattice Semiconductor Corporation
Catalog Embedded - CPLDs (Complex Programmable Logic Devices)
Description IC CPLD 64MC 7.5NS 64CSBGA
Datasheet
LC4064ZE-7MN64C Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Lattice Semiconductor Corporation
Packaging Tray
Status Active
Programmable Type In System Programmable
Delay Time tpd(1) Max 7.5ns
Voltage Supply - Internal 1.7 V to 1.9 V
Number of Logic Elements/Blocks 4
Number of Macrocells 64
Number of I/O 48
Temperature Range - Operating 0°C to 90°C (TJ)
Mounting SMD (SMT)
Case / Package 64-CSPBGA (5x5)
Win Source Part Number 1051737-LC4064ZE-7MN64C
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian LC4064ZE-7MN64C CAD Model

Description

The LC4064ZE-7MN64C is a programmable integrated circuit from Lattice Semiconductor Corporation.

  • I/O: 48
  • Logic Elements/Blocks: 4
  • Macrocells: 64
  • Programmable: In-System
  • Delay Time tpd(1) max: 7.5ns
  • Internal Voltage: 1.7 V to 1.9 V
  • Package: 64-CSPBGA (5x5)
  • Popularity: Medium
