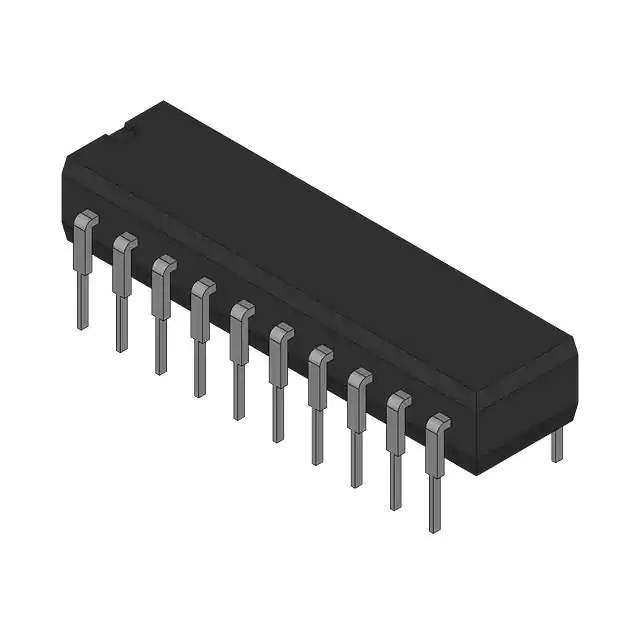

ISPGDS14-7P

Part No ISPGDS14-7P
Manufacturer Lattice Semiconductor Corporation
Catalog Embedded - CPLDs (Complex Programmable Logic Devices)
Description IC CPLD 7NS 20DIP
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Embedded - CPLDs (Complex Programmable Logic Devices)
Mfr Lattice Semiconductor Corporation
Series ispGDS™
Package Bulk
Product Status Active
Programmable Not Verified
Programmable Type In System Programmable
Delay Time tpd(1) Max 7 ns
Voltage Supply - Internal 4.75V ~ 5.25V
Number of I/O 22
Temperature Range - Operating 0°C ~ 75°C (TA)
Mounting Type Through Hole
Package / Case 20-DIP (0.300", 7.62mm)
Supplier Device Package 20-DIP
Standard Package 1 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 164866-ISPGDS14-7P
Ultra Librarian 3D Model Ultra Librarian ISPGDS14-7P CAD Model

Description

The ispGDS™ series from Lattice Semiconductor Corporation offers versatile CPLDs for embedded applications.

  • CPLD: 164866-ISPGDS14-7P
  • I/Os: 22
  • Programmable: In-system
  • Delay Time: 7 ns
  • Voltage Supply: 4.75V to 5.25V
  • Package: 20-DIP (0.300", 7.62mm)
  • Applications: Through-hole
  • Temperature Range: 0°C to 75°C
  • Status: Active product in the ispGDS™ series
  • Solution: Flexible and reliable programmable logic solutions for embedded systems
