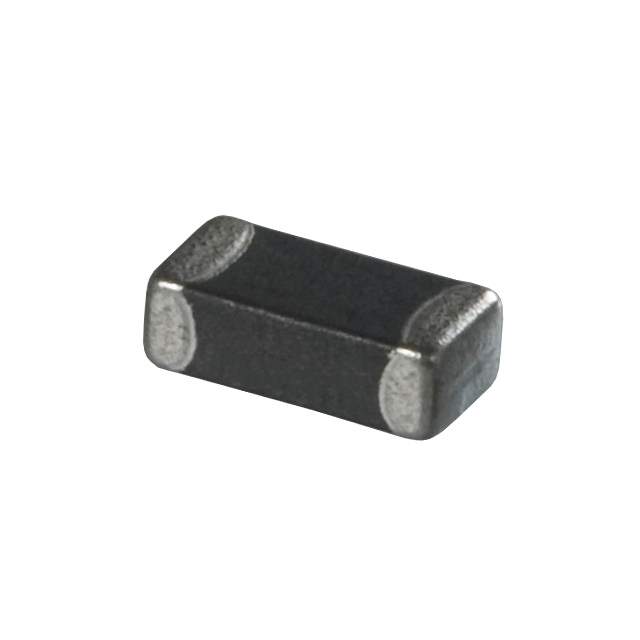

Same model may have multiple batches, images only for reference.

HZ1206E601R-10

Name: HZ1206E601R-10
Brand: Laird-Signal Integrity Products
SKU: 1328600
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	HZ1206E601R-10
Manufacturer	Laird-Signal Integrity Products
Catalog	Ferrite Beads and Chips
Description	FERRITE BEAD 600 OHM 1206 1LN / 600 Ohms @ 100 MHz 1 Power, Signal Line Ferrite Bead 1206 (3216 Metric) 500mA 300mOhm
Datasheet	HZ1206E601R-10 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Filters>Ferrite Beads and Chips
Manufacturer	Laird-Signal Integrity Products
Packaging	Reel - TR
Filter Type	Power, Signal Line
Number of Lines	1
Impedance @ Frequency	600 Ohms @ 100 MHz
Current Rating (Max)	500mA
DC Resistance (DCR) (Max)	300mOhm
Temperature Range - Operating	-40°C ~ 125°C
Case / Package	1206 (3216 Metric)
Mounting	Surface Mount
Height (Max)	0.043" (1.10mm)
Size / Dimension	0.126" L x 0.063" W (3.20mm x 1.60mm)
RoHS Status	ROHS3 Compliant
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8548.00.0000
Other Part Number	HZ1206E601R-10-ND,HZ1206E601R10,240-2415-6,240-2415-1,Q1969200,240-2415-2
Standard Package	3,000
Win Source Part Number	1328600-HZ1206E601R-10
Ultra Librarian 3D Model	Ultra Librarian HZ1206E601R-10 CAD Model

Alternative Products

Description

The Laird-Signal Integrity Products 1328600-HZ1206E601R-10 is a ferrite bead and chip filter that is designed to provide reliable performance in electronic devices.

Maximum Current Rating: 500mA
DC Resistance (DCR): 300mOhm
Impedance: 600 Ohms @ 100 MHz
Packaging: Reel - TR
Height: 0.043" (1.10mm)
Number of Lines: One
Application: Power and signal line filtering
