Same model may have multiple batches, images only for reference.

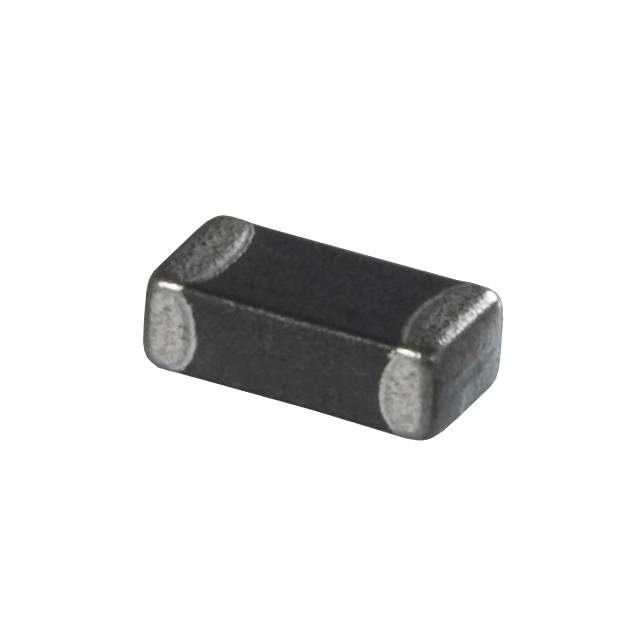

HZ1206D102R-10 Real Image
Same model may have multiple batches, images only for reference.

HZ1206D102R-10

Part No HZ1206D102R-10
Manufacturer Laird-Signal Integrity Products
Catalog Ferrite Beads and Chips
Description FERRITE BEAD 1.25 KOHM 1206 1LN  /  1 kOhms @ 100 MHz 1 Power, Signal Line Ferrite Bead 1206 (3216 Metric) 400mA 400mOhm
Datasheet
HZ1206D102R-10 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Ferrite Beads and Chips
Mfr Laird-Signal Integrity Products
Series 1206
Package Tape & Reel
Filter Type Power, Signal Line
Number of Lines 1
Impedance @ Frequency 1 kOhms @ 100 MHz
Current Rating (Max) 400mA
DC Resistance (DCR) (Max) 400mOhm
Temperature Range - Operating -40°C ~ 125°C
Package / Case 1206 (3216 Metric)
Mounting SMD (SMT)
Height (Max) 0.043" (1.10mm)
Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Other Names Q3166986AA,240-2414-6,HZ1206D102R10,240-2414-2,240-2414-1
Standard Package 3,000
Win Source Part Number 997870-HZ1206D102R-10
Ultra Librarian 3D Model Ultra Librarian HZ1206D102R-10 CAD Model

Description

The Laird-Signal Integrity Products HZ1206D102R-10 is a ferrite bead that comes in a 1206 (3216 Metric) package and can handle a current of up to 400mA.

  • Manufacturer: Laird-Signal Integrity Products
  • Product Name: HZ1206D102R-10
  • Package: 1206 (3216 Metric)
  • Current: 400mA
  • Impedance: 1 kOhms @ 100 MHz
  • Series: 1206
  • Operating Temperature: -40°C to 125°C
  • Packaging: Tape and reel (3000 pieces per package)
  • REACH: Unaffected
  • ECCN: EAR99
