Same model may have multiple batches, images only for reference.

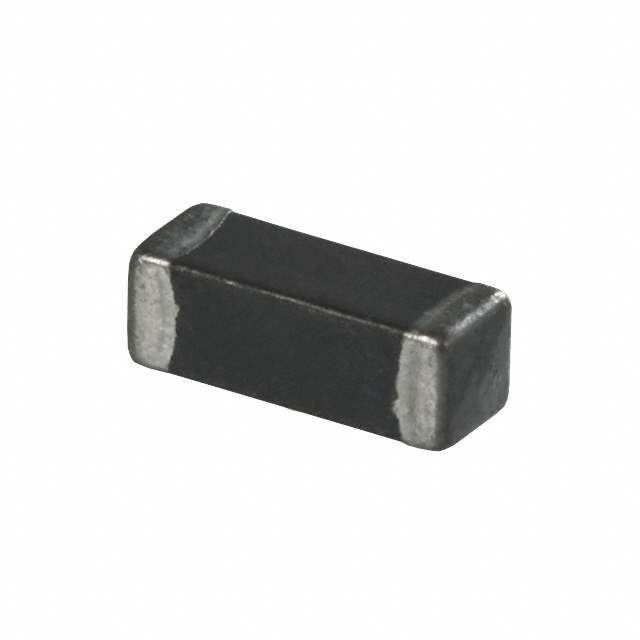

HI1806T600R-00 Real Image
Same model may have multiple batches, images only for reference.

HI1806T600R-00

Part No HI1806T600R-00
Manufacturer Laird-Signal Integrity Products
Catalog Ferrite Beads and Chips
Description FERRITE BEAD 60 OHM 1806 1LN
Datasheet
HI1806T600R-00 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Laird-Signal Integrity Products
Packaging Reel - TR
Status Obsolete(EOL)
Filter Type Power, Signal Line
Number of Lines 1
Impedance @ Frequency 60 Ohm @ 100MHz
Current Rating (Max) 6A
DC Resistance (DCR) (Max) 10 mOhm
Temperature Range - Operating -40°C to 125°C
Mounting SMD (SMT)
Height (Max) 0.073" (1.85mm)
Dimension 0.177" L x 0.063" W (4.50mm x 1.60mm)
Win Source Part Number 114204-HI1806T600R-00
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Industrial, Power Management, Consumer Electronics, Portable Devices
Ultra Librarian 3D Model Ultra Librarian HI1806T600R-00 CAD Model

Description

The Laird-Signal Integrity Products 114204-HI1806T600R-00 is a power and signal line ferrite filter that is used to suppress electromagnetic interference in electronic circuits. With an impedance of 60 Ohms at 100MHz, it can effectively reduce signal noise and improve signal integrity. The ferrite filter has a current rating of 6A and a DC resistance of 10 mOhm. It comes in a 1806 (4516 Metric) package and has a dimension of 0.177 inches x 0.063 inches. The Laird-Signal Integrity Products 114204-HI1806T600R-00 is ideal for use in industrial, power management, consumer electronics, and portable devices.
