Same model may have multiple batches, images only for reference.

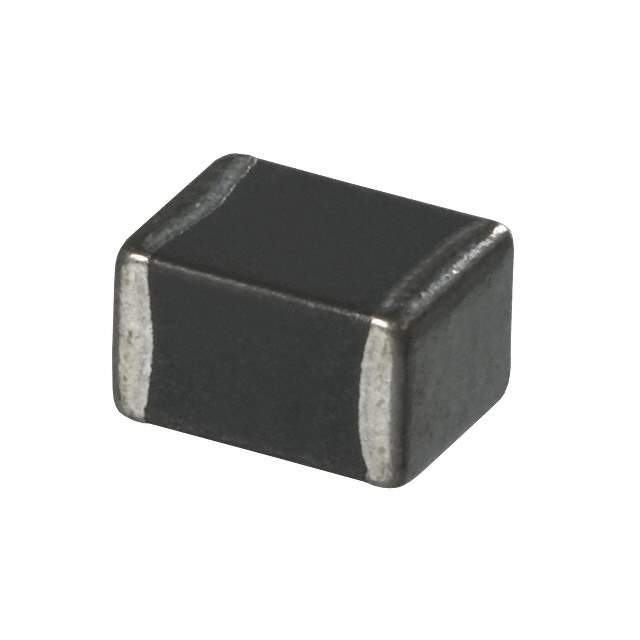

DM1612X560R-10 Real Image
Same model may have multiple batches, images only for reference.

DM1612X560R-10

Part No DM1612X560R-10
Manufacturer Laird-Signal Integrity Products
Catalog Ferrite Beads and Chips
Description FERRITE BEAD 56 OHM 1612 1LN
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Laird-Signal Integrity Products
Packaging Reel
Number of Lines 1
Impedance at Frequency 56 Ohms at 100MHz
Current Rating (Maximum) 10A
DC Resistance (DCR) (Maximum) 4mOhm
Temperature Range - Operating -40°C ~ 125°C
Manufacturer Package 1612 (4030 Metric)
Mounting Style SMD
Height (Maximum) 0.098" (2.48mm)
Dimension 0.160" L x 0.120" W (4.06mm x 3.05mm)
Manufacturer Pack Quantity 2,500
MSL Level Not Applicable
Popularity Low
Supply and Demand Status Limited
Win Source Part Number 812729-DM1612X560R-10
Ultra Librarian 3D Model Ultra Librarian DM1612X560R-10 CAD Model

Description

The Laird-Signal Integrity Products 812729-DM1612X560R-10 is a surface-mountable ferrite bead.

  • Impedance: 56 Ohms @ 100MHz
  • Current Rating: 10A
  • DC Resistance: 4mOhm
  • Package: 1612 (4030 Metric)
  • Dimension: 0.160 inches x 0.120 inches
  • Operating Temperature: -40°C to 125°C
