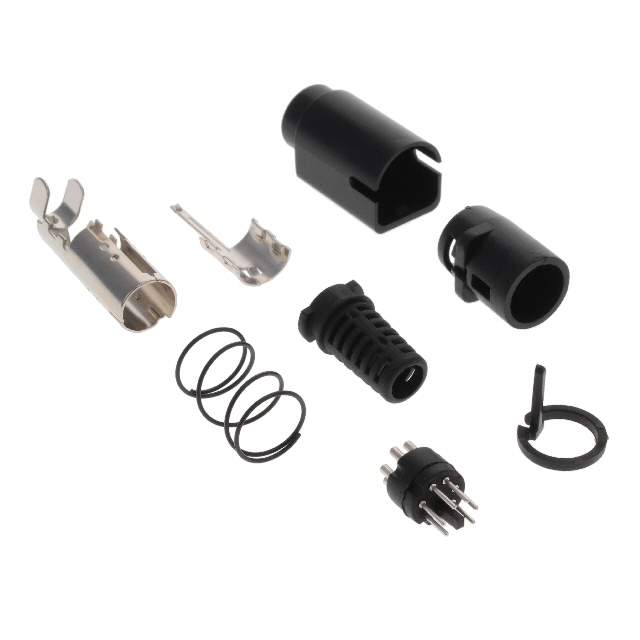

KMDLAX-6P Real Image
Same model may have multiple batches, images only for reference.

KMDLAX-6P

Part No KMDLAX-6P
Manufacturer Kycon, Inc.
Catalog Circular Connectors - Assemblies
Description CONN PLUG MALE MINI DIN 6POS SLD / 6 Position Circular Connector Plug, Male Pins Solder Cup
Datasheet
KMDLAX-6P Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Circular Connectors>Circular Connector Assemblies
Manufacturer Kycon, Inc.
Packaging Bulk
Connector Type Plug, Male Pins
Number of Positions 6
Shell Size - Insert Mini DIN
Mounting Free Hanging (In-Line)
Termination Solder Cup
Fastening Type Snap-In
Orientation Keyed
Primary Material Plastic
Shell Material Polyacrylonitrile Butadiene Styrene (ABS)
Contact Finish - Mating Silver
Color Black
Material Flammability Rating UL94 HB
Features Backshell, Strain Relief
Shielding Shielded
Current Rating (Amps) 1A, 2A
Voltage Rating 100VAC, 12VDC
Cable Opening 0.217" (5.50mm)
Temperature Range - Operating -25°C ~ 80°C
Backshell Material, Plating Polyacrylonitrile Butadiene Styrene (ABS)
Contact Material Brass
Insert Material Polyamide (PA), Nylon
Applications Audio, Video
Base Product Number KMDLAX
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4020
Other Part Number 2092-KMDLAX-6P
Standard Package 200
Win Source Part Number 1334615-KMDLAX-6P
Ultra Librarian 3D Model Ultra Librarian KMDLAX-6P CAD Model

Description

The KMDLAX-6P from Kycon, Inc. is a circular connector assembly with a plug and male pins.

  • Manufacturer: Kycon, Inc.
  • Type: Circular Connector Assembly
  • Connector Type: Plug
  • Pin Gender: Male
  • Positions: 6
  • Color: Black
  • Features: Backshell and Strain Relief
  • Shielded: Yes
  • Voltage Rating: 100VAC and 12VDC
  • Operating Temperature: -25°C to 80°C
  • Current Rating: 1A and 2A
  • Applications: Audio and Video
