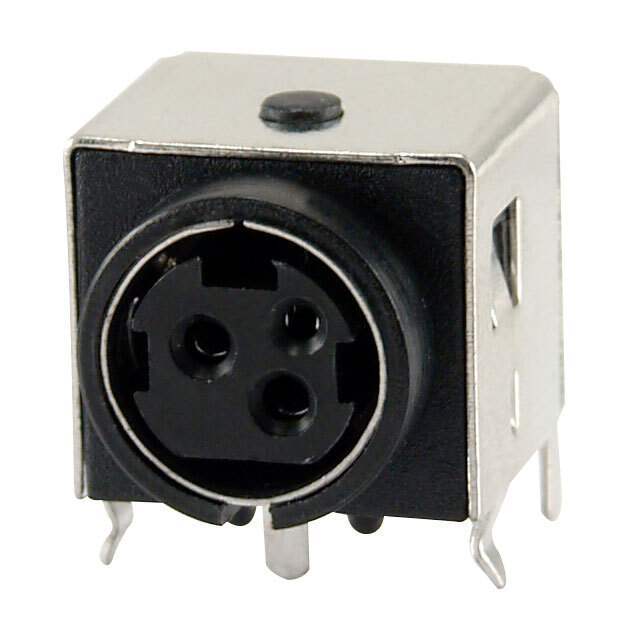

KPJX-3S-S Kycon, Inc.
Same model may have multiple batches, images only for reference.

KPJX-3S-S

Part No KPJX-3S-S
Manufacturer Kycon, Inc.
Catalog Circular Connectors - Assemblies
Description CONN JACK FMALE 3POS TIN SOLDER
Datasheet
KPJX-3S-S Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1203758-KPJX-3S-S
Manufacturer Kycon, Inc.
Category Connectors, Interconnects- Circular Connectors-Circular Connector Assemblies
Series KPJX
Package Tray
Product Status Active
Connector Type Jack, Female Sockets
Number of Positions 3 (1 + 2 Power)
Features Board Guide, Board Lock
Shielding Shielded
Insert Material Polybutylene Terephthalate (PBT)
Ultra Librarian 3D Model Ultra Librarian KPJX-3S-S CAD Model

Description

Product Features

  • Laptop Computers, Power Supplies and Other Portable
  • Digital Equipment Applications
  • Snap & Lock Feature Helps to Prevent Accidental Disconnects
  • 3 or 4 Pins Transmit Power, or One Pin Can Be Used For
  • Signal Transmission
  • For Signal and DC Power Applications
  • CSA/NRTL Certified File No. LR78160
  • UL File No. E140125
