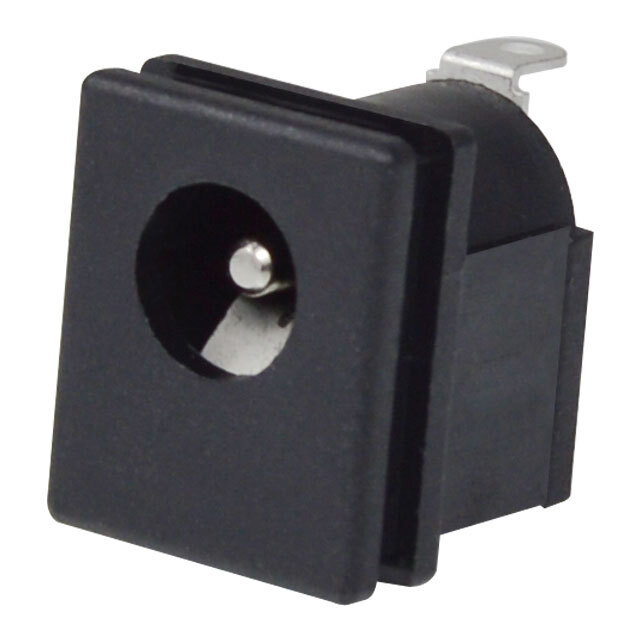

Same model may have multiple batches, images only for reference.
KLDVX-SMT-02-BTR Kycon, Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

KLDVX-SMT-02-BTR

Part No KLDVX-SMT-02-BTR
Manufacturer Kycon, Inc.
Catalog Barrel - Power Connectors
Description 2.5MM SMT DC POWER JACK, VERTICA
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Connector Type Jack
Gender Male
Industry Recognized Mating Diameter 2.50mm ID (0.098"), 5.50mm OD (0.217")
Actual Diameter 0.098" (2.50mm ID), 0.248" (6.30mm OD)
Number of Positions/Contacts 2 Conductors, 3 Contacts
Internal Switch(s) Single Switch, Normally Closed
Mounting Type Surface Mount
Mounting Feature Flange
Termination Solder Eyelet(s)
Shielding Unshielded
Voltage - Rated 16VDC
Current Rating (Amps) 3.5 A
Material Flammability Rating UL94 V-0
Temperature Range - Operating -25°C ~ 85°C
Package Tape & Reel
Supply and Demand Status Limited
Win Source Part Number 1633350-KLDVX-SMT-02-BTR
Ultra Librarian 3D Model Ultra Librarian KLDVX-SMT-02-BTR CAD Model
