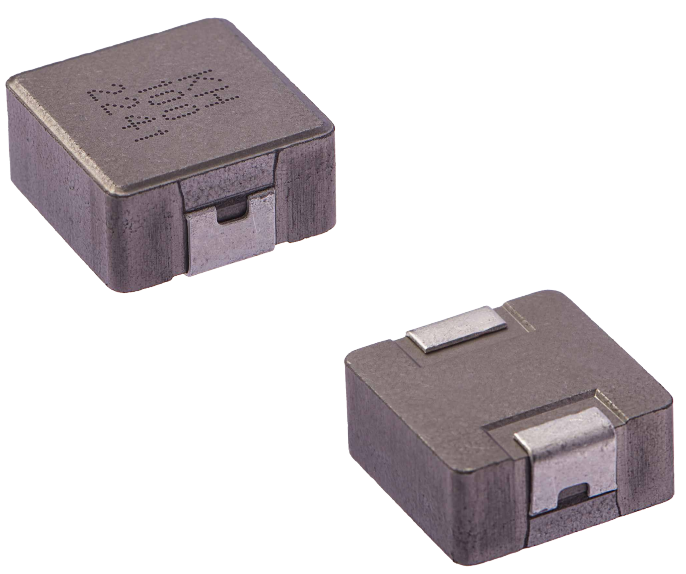

Same model may have multiple batches, images only for reference.
MDA1360-4R7M KOHER（Shanghai）Electronics Co.,Ltd – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

MDA1360-4R7M

Part No MDA1360-4R7M
Manufacturer KOHER（Shanghai）Electronics Co.,Ltd
Catalog Fixed Inductors
Description SMD 4.7uH 23A 7mΩ
Datasheet
MDA1360-4R7M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Saturation Current 23A
DC Resistance 7mΩ APPLICATION ·Headlamps, tail lamps and interior lighting ·HVAC ·Doors, window lift and seat control ·Audio subsystem ·Digital instrument cluster ·In-Vehicle Infotainment and navigation
Soldering Reflow
Preheat condition 150 ~200 C/ 60~120 sec.
Allowed time above 217 C 60~90 sec.
Max temperature 260 C.
Max time at max temperature 10 sec.
Allowed Reflow time 2x max.
Features Shielded construction Capable of corresponding high frequency"Low loss realized with low DCR."High performance (lsat) realized by metal dust core."Ultra low buzz noise, due to composite construction."100% Lead(Pb)-Free and RoHS compliant."
AEC-Q200 qualified"Operating temperature -55 to +155 'C (including self-temperature rise)
Quantity 500PCS
Ultra Librarian 3D Model Ultra Librarian MDA1360-4R7M CAD Model
