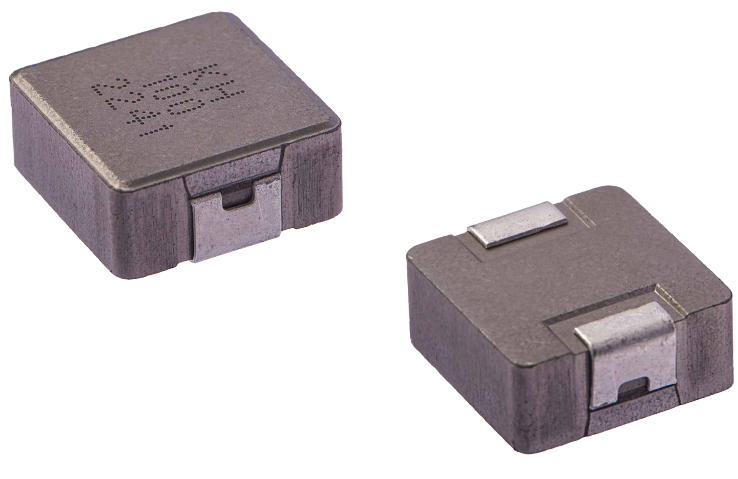

Same model may have multiple batches, images only for reference.

MDA1350-3R3M

Name: MDA1350-3R3M
Brand: KOHER（Shanghai）Electronics Co.,Ltd
SKU: WS1602510
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	MDA1350-3R3M
Manufacturer	KOHER（Shanghai）Electronics Co.,Ltd
Catalog	Fixed Inductors
Description	SMD 3.3uH 23A 6mΩ
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Saturation Current	23A
DC Resistance	6mΩ APPLICATION ·Headlamps, tail lamps and interior lighting ·HVAC ·Doors, window lift and seat control ·Audio subsystem ·Digital instrument cluster ·In-Vehicle Infotainment and navigation
Soldering Reflow
Preheat condition	150 ~200℃/60~120 sec.
Allowed time above 217℃	60~90 sec.
Max temperature	260C
Max time at max temperature	5 sec.
Allowed Reflow time	2x max.
Features	Shielded construction Capable of corresponding high frequencyLow loss realized with low DCR."High performance (lsat) realized by metal dust core."Ultra low buzz noise, due to composite construction."100% Lead(Pb)-Free and RoHS compliant."
AEC-Q200 qualified"Operating temperature	-55 to +155 °C (including self-temperature rise)"
Quantity	500pcs
Ultra Librarian 3D Model	Ultra Librarian MDA1350-3R3M CAD Model
