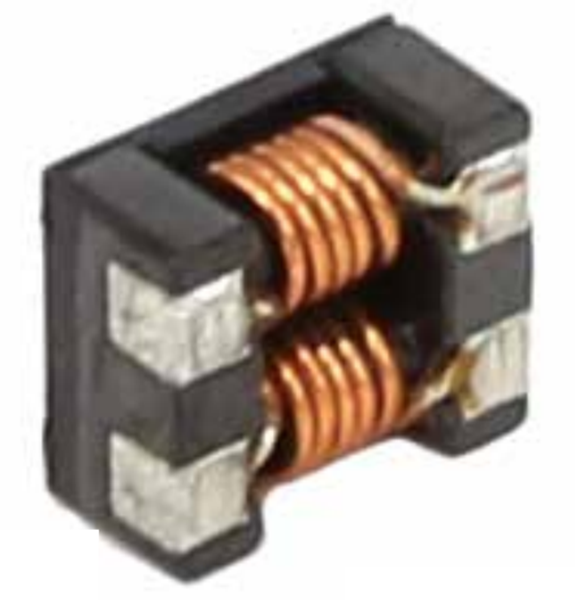

BCMA1211-701Y KOHER（Shanghai）Electronics Co.,Ltd – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

BCMA1211-701Y

Part No BCMA1211-701Y
Manufacturer KOHER（Shanghai）Electronics Co.,Ltd
Catalog Common Mode Chokes
Description CMC 700Ω@100MHz 8.0A  6.0mΩ
Datasheet
BCMA1211-701Y Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Common Mode Chokes
Z@100MHz(Ω) 700Ω
Saturation Current 8.0A
DC Resistance 6.0mΩ
Application Measures against common mode noise in power lines for various DC power lines, multimedia devices, and various electronic devices
Soldering Reflow
Preheat condition 150 ~200℃/60~180 sec.
Allowed time above 217℃ 60~150 sec.
Max temperature 260℃.
Max time at max temperature 10 sec.
Allowed Reflow time 3x max
Features High common mode impedance cause excellent noisesuppression performance."
Quantity 500pcs
Ultra Librarian 3D Model Ultra Librarian BCMA1211-701Y CAD Model
