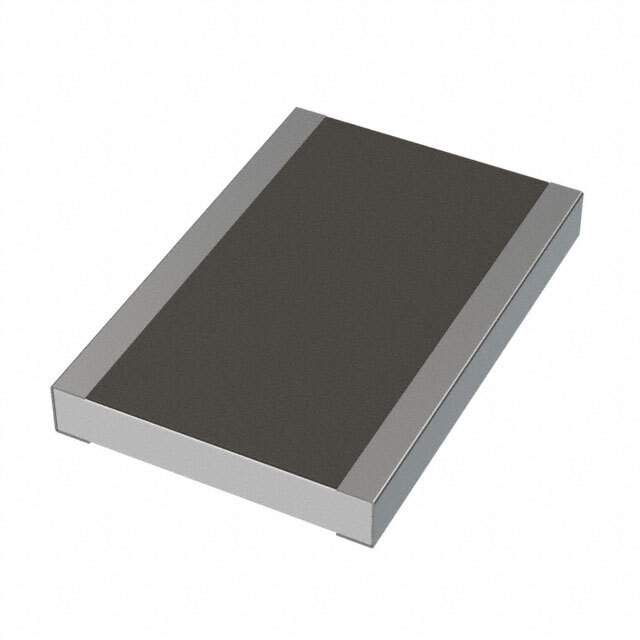

WK73S2JTTE15LJ Real Image1 WK73S2JTTE15LJ Real Image2
Same model may have multiple batches, images only for reference.
WK73S2JTTE15LJ Real Image1 WK73S2JTTE15LJ Real Image2
WK73S2JTTE15LJ Real Image1 WK73S2JTTE15LJ Real Image2
Same model may have multiple batches, images only for reference.

WK73S2JTTE15LJ

Part No WK73S2JTTE15LJ
Manufacturer KOA Speer
Catalog Chip Resistor - Surface Mount
Description RES 15M OHM 5% 1W 1812 / 15 mOhms ±5% 1W Chip Resistor Wide 1812 (4532 Metric), 1218 Automotive AEC-Q200, Moisture Resistant Thick Film
Datasheet
WK73S2JTTE15LJ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr KOA Speer
Series WK73S
Package Tape & Reel (TR)
Product Status Not For New Designs
Resistance 15 mOhms
Tolerance ±5%
Power (Watts) 1W
Composition Thick Film
Features Automotive AEC-Q200, Moisture Resistant
Temperature Coefficient ±800ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case Wide 1812 (4532 Metric), 1218
Supplier Device Package 1218
Ratings AEC-Q200
Size / Dimension 0.122" L x 0.181" W (3.10mm x 4.60mm)
Height - Seated (Max) 0.028" (0.70mm)
Number of Terminations 2
Base Product Number WK73S2J
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Standard Package 4,000 pcs
Win Source Part Number 1383856-WK73S2JTTE15LJ
Ultra Librarian 3D Model Ultra Librarian WK73S2JTTE15LJ CAD Model

Description

The WK73S2JTTE15LJ is a chip resistor from KOA Speer's WK73S series manufactured by KOA Speer.

  • Mounting Type: Surface Mount
  • Resistance: 15 mOhms
  • Power Rating: 1W
  • Tolerance: ±5%
  • Temperature Coefficient: ±800ppm/°C
  • Moisture Resistant: Yes
  • Standard: Automotive AEC-Q200
  • Package: Tape and Reel
