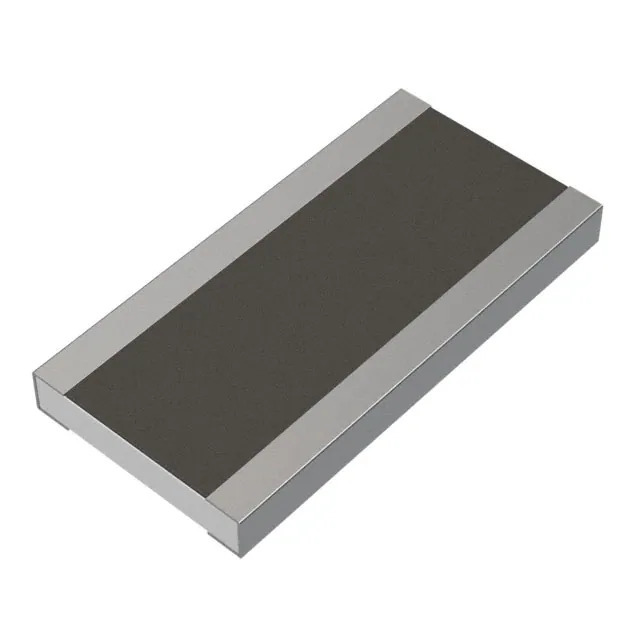

WK73S2HTTE47L0F KOA Speer
Same model may have multiple batches, images only for reference.

WK73S2HTTE47L0F

Part No WK73S2HTTE47L0F
Manufacturer KOA Speer
Catalog Chip Resistor - Surface Mount
Description RES 47M OHM 1% 1W 2010
Datasheet
WK73S2HTTE47L0F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr KOA Speer Electronics, Inc.
Series WK73S
Package Tape & Reel
Product Status Active
Resistance 47 mOhms
Tolerance ±1%
Power (Watts) 1W
Composition Thick Film
Features Automotive AEC-Q200, Moisture Resistant
Temperature Coefficient ±200ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case Wide 2010 (5025 Metric), 1020
Supplier Device Package 1020
Ratings AEC-Q200
Size / Dimension 0.098" L x 0.197" W (2.50mm x 5.00mm)
Height - Seated (Max) 0.028" (0.70mm)
Number of Terminations 2
Base Product Number WK73S2H
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1375276-WK73S2HTTE47L0F
Ultra Librarian 3D Model Ultra Librarian WK73S2HTTE47L0F CAD Model

Description

The WK73S2HTTE47L0F is a chip resistor from KOA Speer Electronics, Inc.

  • Applications: Automotive, Moisture Resistance
  • AEC-Q200: Yes
  • ECCN: EAR99
  • Height - Seated (Max): 0.028" (0.70mm)
  • Length: 0.098" (2.50mm)
  • Power Rating: 1W
  • REACH: Unaffected
  • Resistance: 47 mOhms
  • Temperature Coefficient: ±200ppm/°C
  • Tolerance: ±1%
  • Package Size: Wide 2010 (5025 Metric)
  • Width: 0.197" (5.00mm)
  • Series: WK73S
