Same model may have multiple batches, images only for reference.

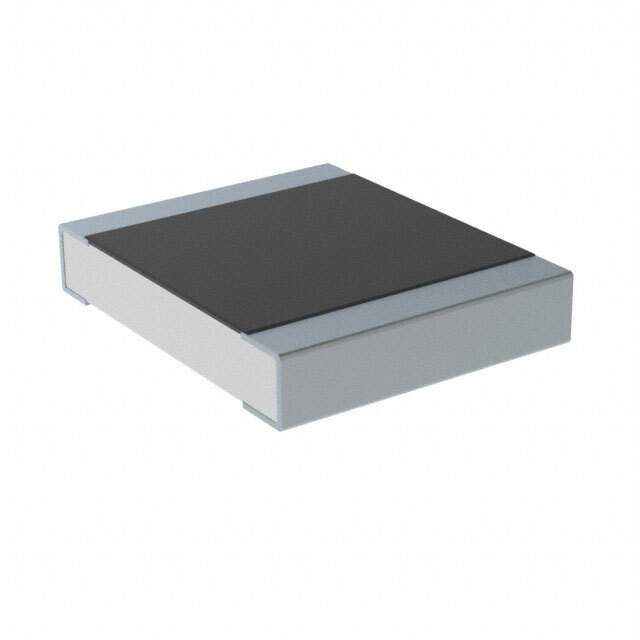

SR732ETTDR22J Real Image
Same model may have multiple batches, images only for reference.

SR732ETTDR22J

Part No SR732ETTDR22J
Manufacturer KOA Speer
Catalog Chip Resistor - Surface Mount
Description CURRENT SENSE RESISTOR / 220 mOhms ±5% 0.5W, 1/2W Chip Resistor 1210 (3225 Metric) Automotive AEC-Q200, Current Sense, Moisture Resistant Thick Film
Datasheet
SR732ETTDR22J Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr KOA Speer Electronics, Inc.
Series SR73
Package Tape & Reel
Resistance 220 mOhms
Tolerance ±5%
Power (Watts) 0.5W, 1/2W
Composition Thick Film
Features Automotive AEC-Q200, Current Sense, Moisture Resistant
Temperature Coefficient ±200ppm/°C
Temperature Range - Operating -55°C ~ 150°C
Package / Case 1210 (3225 Metric)
Supplier Device Package 1210
Ratings AEC-Q200
Dimension 0.126" L x 0.102" W (3.20mm x 2.60mm)
Height - Seated (Max) 0.028" (0.70mm)
Number of Terminations 2
Base Product Number SR732E
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Other Names 2019-SR732ETTDR22JTR,2019-SR732ETTDR22JCT,2019-SR732ETTDR22JDKR
Standard Package 5,000
Win Source Part Number 1095911-SR732ETTDR22J
Ultra Librarian 3D Model Ultra Librarian SR732ETTDR22J CAD Model

Description

The Toshiba TC7S02FE3 is a surface mountable chip with two terminations.

  • Resistance: 220 mOhms
  • Power Rating: 0.5W
  • Tolerance: ±5%
  • Temperature Coefficient: ±200ppm/°C
  • Usage: Commonly used as a current sense in automotive applications.
  • Moisture Resistant: Yes
  • Package: Tape and reel
  • Units per reel: 5,000
  • Height when seated: 0.028” (0.70mm)
  • Package/Case: 1210 (3225 Metric)
  • Supply and demand: Stable
  • Operating Temperature Range: -55°C to 150°C
  • ECCN: EAR99
  • HTSUS code: 8533.21.0030
  • Alternative parts (cross-reference): ERJ-14RQJR22U, ERJ-14BQJR22U, RL1210JR-070R22L, ERJ14BQFR22U, RL1210JR-070R2L, RL1210FR-070R22L
