Same model may have multiple batches, images only for reference.

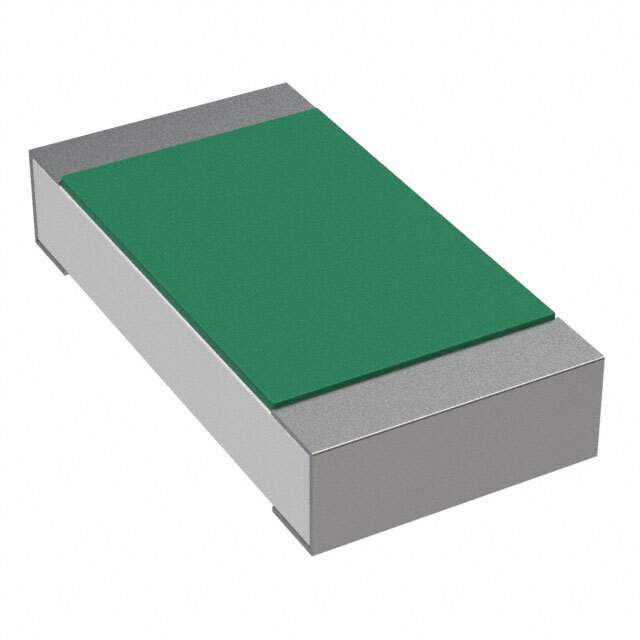

SG73P2BTTD430J Real Image
Same model may have multiple batches, images only for reference.

SG73P2BTTD430J

Part No SG73P2BTTD430J
Manufacturer KOA Speer
Catalog Chip Resistor - Surface Mount
Description RES 43 OHM 5% 1/3W 1206 / 43 Ohms ±5% 0.75W, 3/4W Chip Resistor 1206 (3216 Metric) Automotive AEC-Q200, Pulse Withstanding Thick Film
Datasheet
SG73P2BTTD430J Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr KOA Speer Electronics, Inc.
Series SG73P
Package Tape & Reel
Resistance 43 Ohms
Tolerance ±5%
Power (Watts) 0.75W, 3/4W
Composition Thick Film
Features Automotive AEC-Q200, Pulse Withstanding
Temperature Coefficient ±200ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 1206 (3216 Metric)
Supplier Device Package 1206
Ratings AEC-Q200
Size / Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max) 0.028" (0.70mm)
Number of Terminations 2
Base Product Number SG73P2
Standard Package 5,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1341354-SG73P2BTTD430J
Ultra Librarian 3D Model Ultra Librarian SG73P2BTTD430J CAD Model

Description

The SG73P2BTTD430J is a chip resistor from KOA Speer Electronics Inc. that is used for surface mount applications.

  • Resistance: 43 Ohms
  • Power Rating: 0.75W or 3/4W
  • Composition: Thick Film
  • Tolerance: ±5%
  • Temperature Coefficient: ±200ppm/°C
  • Operating Temperature: -55°C to 155°C
  • Package: 1206 (3216 Metric)
  • Supplier Device Package: 1206
  • Rating: AEC-Q200
  • Failure Rate: -
