Same model may have multiple batches, images only for reference.

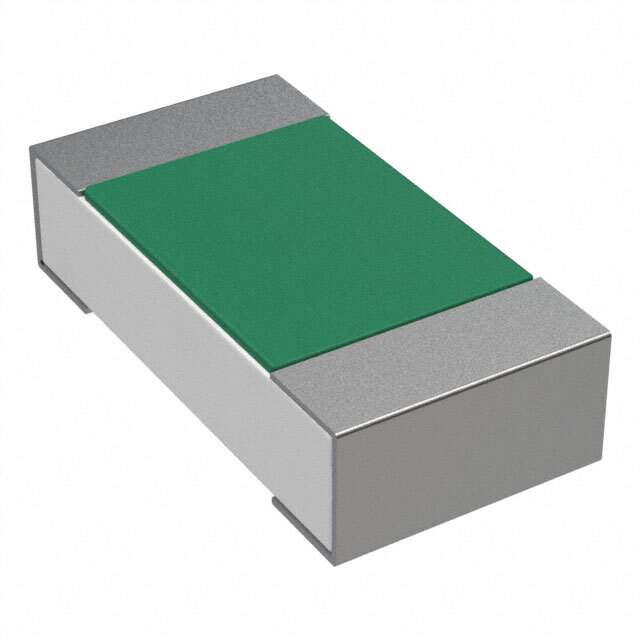

SG73P1JTTD1R00F Real Image
Same model may have multiple batches, images only for reference.

SG73P1JTTD1R00F

Part No SG73P1JTTD1R00F
Manufacturer KOA Speer
Catalog Chip Resistor - Surface Mount
Description RES 1 OHM 1% 1/3W 0603 / 1 Ohms ±1% 0.333W, 1/3W Chip Resistor 0603 (1608 Metric) Automotive AEC-Q200, Pulse Withstanding Thick Film
Datasheet
SG73P1JTTD1R00F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr KOA Speer Electronics, Inc.
Series SG73P
Package Tape & Reel
Resistance 1 Ohms
Tolerance ±1%
Power (Watts) 0.333W, 1/3W
Composition Thick Film
Features Automotive AEC-Q200, Pulse Withstanding
Temperature Coefficient ±200ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 0603 (1608 Metric)
Supplier Device Package 0603
Ratings AEC-Q200
Size / Dimension 0.063" L x 0.031" W (1.60mm x 0.80mm)
Height - Seated (Max) 0.022" (0.55mm)
Number of Terminations 2
Base Product Number SG73P1
Standard Package 5,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1341075-SG73P1JTTD1R00F
Ultra Librarian 3D Model Ultra Librarian SG73P1JTTD1R00F CAD Model

Description

The SG73P1JTTD1R00F is a chip resistor that belongs to the SG73P series.

  • Series: SG73P
  • Mounting Type: Surface Mount
  • Length: 0.063 inches
  • Width: 0.031 inches
  • Height: 0.022 inches
  • Tolerance: ±1%
  • Temperature Coefficient: ±200ppm/°C
  • Power Rating: 0.333W or 1/3W
  • Resistance: 1 Ohms
  • Compliance: Automotive AEC-Q200
  • Feature: Pulse Withstanding
  • Package: Tape and Reel
  • Pieces Per Package: 5,000
  • Type: Thick Film
  • Terminations: 2
