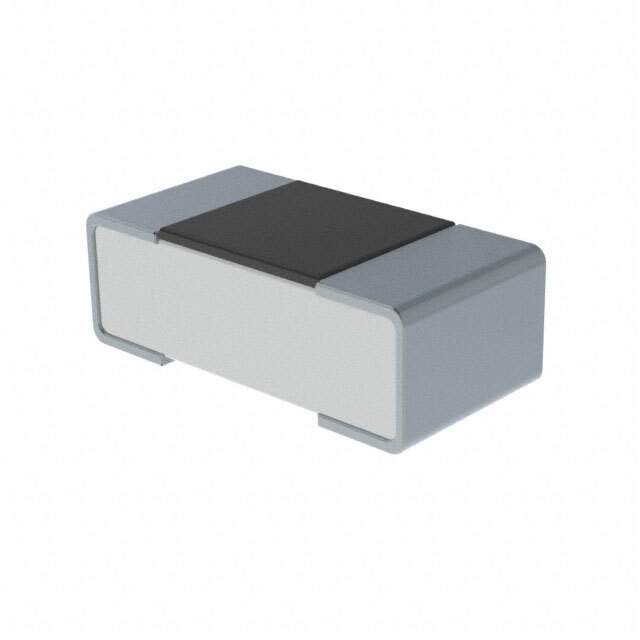

RN73H1ETTP8201B25 Real Image
Same model may have multiple batches, images only for reference.

RN73H1ETTP8201B25

Part No RN73H1ETTP8201B25
Manufacturer KOA Speer
Catalog Chip Resistor - Surface Mount
Description RES 8.2K OHM 0.1% 1/16W 0402 / 8.2 kOhms ±0.1% 0.063W, 1/16W Chip Resistor 0402 (1005 Metric) Automotive AEC-Q200, Moisture Resistant Metal Film
Datasheet
RN73H1ETTP8201B25 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr KOA Speer Electronics, Inc.
Series RN73H
Package Tape & Reel
Resistance 8.2 kOhms
Tolerance ±0.1%
Power (Watts) 0.063W, 1/16W
Composition Metal Film
Features Automotive AEC-Q200, Moisture Resistant
Temperature Coefficient ±25ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 0402 (1005 Metric)
Supplier Device Package 0402
Ratings AEC-Q200
Dimension 0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max) 0.016" (0.40mm)
Number of Terminations 2
Base Product Number RN73H1E
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Other Names 2019-RN73H1ETTP8201B25DKR,2019-RN73H1ETTP8201B25TR,2019-RN73H1ETTP8201B25CT
Standard Package 10,000
Win Source Part Number 1132585-RN73H1ETTP8201B25
Ultra Librarian 3D Model Ultra Librarian RN73H1ETTP8201B25 CAD Model

Description

The KOA Speer Electronics, Inc. chip resistor is a surface mount resistor that is categorized under Resistors>Chip Resistor.

  • Series: RN73H
  • Resistance: 8.2 kOhms
  • Tolerance: ±0.1%
  • Temperature Coefficient: ±25ppm/°C
  • Package: Tape & Reel
  • Height Seated (Max): 0.016" (0.40mm)
  • Standard Package: 10,000
  • Power (Watts): 0.063W, 1/16W
  • Composition: Metal Film
  • Number of Terminations: 2
  • Package/Case: 0402 (1005 Metric)
  • Supplier Device Package: 0402
  • Temperature Range: -55°C ~ 155°C
  • Dimensions: 0.039" L x 0.020" W (1.00mm x 0.50mm)
  • Rating: AEC-Q200
  • Feature: Moisture Resistant
