Same model may have multiple batches, images only for reference.

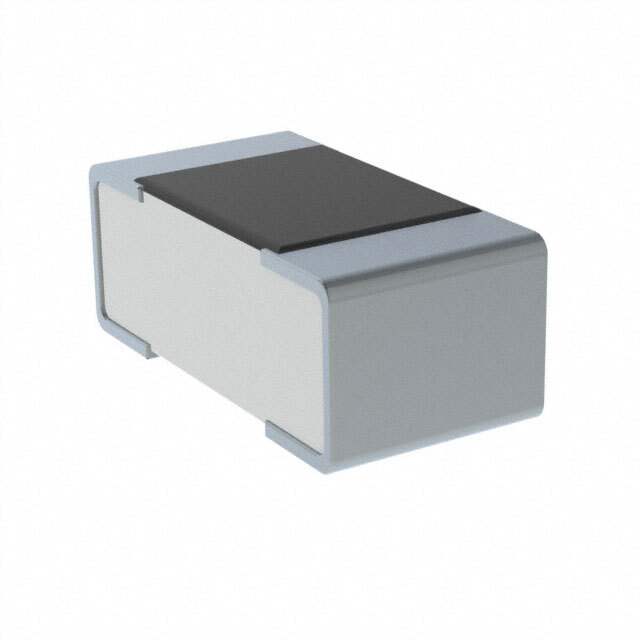

RN732ATTD2703C25 Real Image
Same model may have multiple batches, images only for reference.

RN732ATTD2703C25

Part No RN732ATTD2703C25
Manufacturer KOA Speer
Catalog Chip Resistor - Surface Mount
Description RES 270K OHM 0.25% 1/10W 0805 / 270 kOhms ±0.25% 0.1W, 1/10W Chip Resistor 0805 (2012 Metric) Moisture Resistant Thin Film
Datasheet
RN732ATTD2703C25 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr KOA Speer
Series RN73
Package Tape & Reel
Product Status Obsolete
Resistance 270 kOhms
Tolerance ±0.25%
Power (Watts) 0.1W, 1/10W
Composition Thin Film
Features Moisture Resistant
Temperature Coefficient ±25ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 0805 (2012 Metric)
Supplier Device Package 0805
Size / Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max) 0.024" (0.60mm)
Number of Terminations 2
Base Product Number RN732A
Standard Package 5,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 892082-RN732ATTD2703C25
Ultra Librarian 3D Model Ultra Librarian RN732ATTD2703C25 CAD Model

Description

The 892082-RN732ATTD2703C25 is a chip resistor designed for surface mount applications from KOA Speer.

  • Series: RN73
  • Size: 0.079" L x 0.049" W (2.00mm x 1.25mm)
  • Seated Height: 0.024" (0.60mm)
  • Tolerance: ±0.25%
  • Temperature Coefficient: ±25ppm/°C
  • Power Rating: 0.1W (1/10W)
  • Resistance: 270 kOhms
  • Package/Case Size: 0805 (2012 Metric)
  • Packaging: tape and reel package
  • Feature: moisture resistant
  • Operating Temperature Range: -55°C to 155°C
  • Composition: thin film
  • Terminations: two
  • Status: obsolete product
