Same model may have multiple batches, images only for reference.

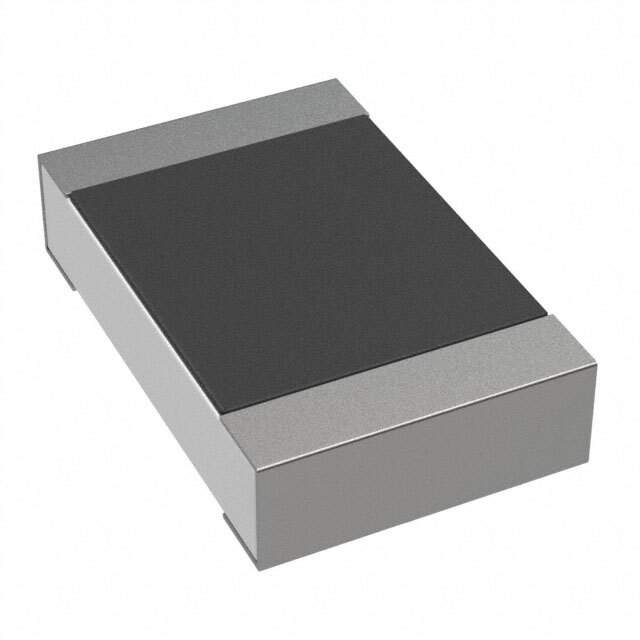

RK73B2ATTD561J Real Image
Same model may have multiple batches, images only for reference.

RK73B2ATTD561J

Part No RK73B2ATTD561J
Manufacturer KOA Speer
Catalog Chip Resistor - Surface Mount
Description RES 560 OHM 5% 1/4W 0805
Datasheet
RK73B2ATTD561J Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Resistors
Estimated Pruduction Lead Time 9 Weeks
Features 560 Ohms ±5% 0.25W, 1/4W Chip Resistor 0805 (2012 Metric) Automotive AEC-Q200, Moisture Resistant Thick Film
Manufacturer KOA Speer
Series RK73B
Package Reel - TR
Operating Temperature Range -55°C ~ 155°C
Package 0805 (2012 Metric)
Case / Package 0805
Family Name RK73B2A
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Other Part Number 2019-RK73B2ATTD561JCT, 2019-RK73B2ATTD561JDKR, 2019-RK73B2ATTD561JTR
Quantity per package 5000
Popularity High
Supply and Demand Status Limited
Win Source Part Number 891827-RK73B2ATTD561J
Ultra Librarian 3D Model Ultra Librarian RK73B2ATTD561J CAD Model

Description

The KOA Speer RK73B2ATTD561J chip resistor is an excellent choice for automotive applications.

  • Resistance: 560 Ohm
  • Power: 0.25W
  • Tolerance: ±5%
  • Series: RK73B
  • Features: moisture-resistant thanks to its thick film
  • Package: 0805 (2012 Metric)
  • Package Type: reel - TR
  • Family Name: RK73B2A
  • Supply and Demand Status: limited
  • Quantity per Package: 5000 pieces
  • MSL Level: 1 (Unlimited)
  • Estimated Production Lead Time: 9 weeks
  • REACH: unaffected
  • HTSUS: 8533.21.0030
  • Other Part Numbers: 2019-RK73B2ATTD561JCT, 2019-RK73B2ATTD561JDKR, and 2019-RK73B2ATTD561JTR
