Same model may have multiple batches, images only for reference.

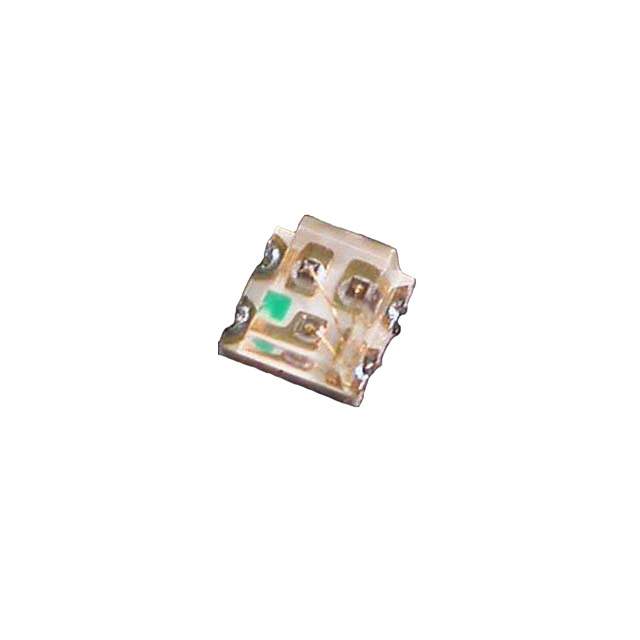

APTF1616SEEZGQBDC Real Image
Same model may have multiple batches, images only for reference.

APTF1616SEEZGQBDC

Part No APTF1616SEEZGQBDC
Manufacturer Kingbright
Catalog LED Indication - Discrete
Description 1.6 x 1.6 mm Full-Color Surface Mount LED | LED RGB CLEAR 4SMD
Datasheet
APTF1616SEEZGQBDC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Kingbright
Packaging Reel
Color Red, Green, Blue (RGB)
Configuration Common Anode
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 110mcd Red, 280mcd Green, 70mcd Blue
Lens Style Rectangle with Flat Top
Lens Size 1.20mm x 1.60mm
Voltage - Forward (Vf) 2V Red, 3.3V Green, 3.3V Blue
Current - Test 20mA Red, 20mA Green, 20mA Blue
Viewing Angle 120°
Mounting Style SMD
Wavelength - Dominant 621nm Red, 525nm Green, 465nm Blue
Wavelength - Peak 630nm Red, 515nm Green, 460nm Blue
Manufacturer Package 0606 (1616 Metric)
Supplier Device Package 4-SMD
Parts Dimension 1.60mm L x 1.60mm W
Height (Maximum) 0.90mm
Manufacturer Pack Quantity 1
MSL Level 3 (168 Hours)
Win Source Part Number 722225-APTF1616SEEZGQBDC
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian APTF1616SEEZGQBDC CAD Model

Description

The APTF1616SEEZGQBDC is an RGB LED indication component that comes in a 4-SMD package from Kingbright.

  • Family: APTF1616
  • Category: Optoelectronic
  • Package: reel
  • Mounting Style: surface mount
  • Supply and Demand Status: balanced
  • Manufacturer Pack Quantity: 1
  • MSL Level: 3 (168 Hours)
  • REACH Status: unaffected
  • Parts Dimension: 1.60mm L x 1.60mm W
  • Voltage-Forward (Vf): 2V Red, 3.3V Green, 3.3V Blue
