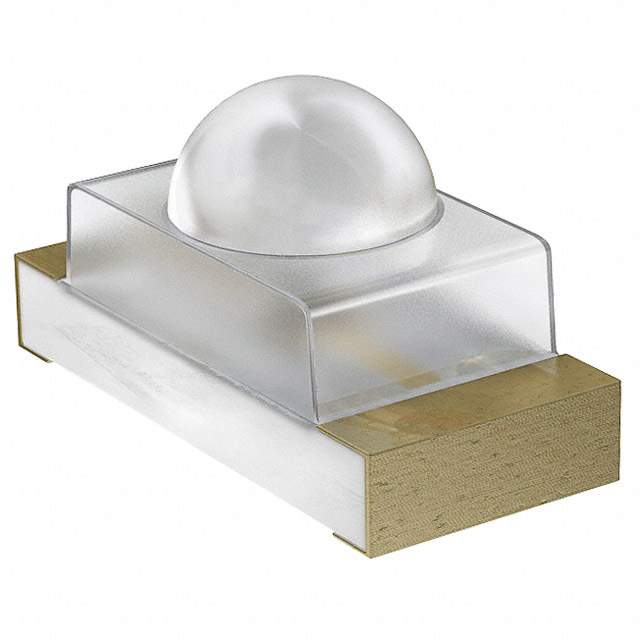

APTD1608SEC/J3 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr Kingbright
Package Tape & Reel
Color Red
Configuration Standard
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 900mcd
Lens Style Round with Domed Top
Lens Size 0.70mm Dia
Voltage - Forward (Vf) (Typ) 2.2V
Current - Test 20mA
Viewing Angle 60°
Mounting SMD (SMT)
Wavelength - Dominant 625nm
Wavelength - Peak 640nm
Package / Case 0603 (1608 Metric)
Supplier Device Package Chip LED
Dimension 1.60mm L x 0.80mm W
Height (Max) 1.10mm
Base Product Number APTD1608
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names APTD1608SECJ3,754-1542-1,754-1542-2,754-1542-6
Standard Package 2,000
Win Source Part Number 1010146-APTD1608SEC/J3
Ultra Librarian 3D Model Ultra Librarian APTD1608SEC/J3 CAD Model

Description

The Kingbright APTD1608SEC/J3 is an SMD (SMT) LED indication-discrete that emits red light with a millicandela rating of 900mcd.

  • Forward Voltage: 2.2V
  • Current: 20mA
  • Lens Style: Round with a Domed Top
  • Lens Size: 0.70mm Diameter
  • Package/Case: 0603 (1608 Metric)
  • Dimensions: 1.60mm L x 0.80mm W
