Same model may have multiple batches, images only for reference.

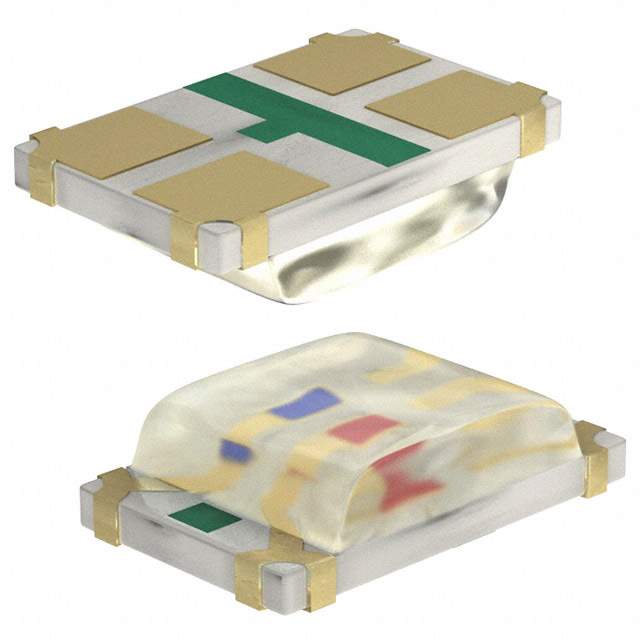

APHBM2012LSURKZGKC Real Image
Same model may have multiple batches, images only for reference.

APHBM2012LSURKZGKC

Part No APHBM2012LSURKZGKC
Manufacturer Kingbright
Catalog LED Indication - Discrete
Description LED GREEN/RED CLEAR 4SMD
Datasheet
APHBM2012LSURKZGKC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics - LED Indication - Discrete
Mfr Kingbright
Series HELI Colour
Package Tape & Reel
Color Green, Red
Configuration Independent
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 90mcd Green, 10mcd Red
Lens Style Rectangle with Flat Top
Lens Size 1.20mm x 1.25mm
Voltage - Forward (Vf) (Typ) 2.7V Green, 1.8V Red
Current - Test 2mA Green, 2mA Red
Viewing Angle 120°
Mounting Type Surface Mount
Wavelength - Dominant 525nm Green, 630nm Red
Wavelength - Peak 515nm Green, 645nm Red
Package / Case 0805 (2012 Metric)
Supplier Device Package 4-SMD
Size / Dimension 2.00mm L x 1.25mm W
Height (Max) 0.45mm
Base Product Number APHBM2012
Standard Package 2,000
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1352321-APHBM2012LSURKZGKC
Ultra Librarian 3D Model Ultra Librarian APHBM2012LSURKZGKC CAD Model

Description

The Kingbright APHBM2012LSURKZGKC is an independent LED indication discrete module with a viewing angle of 120 degrees.

  • Package: 4-SMD 0805 (2012 Metric)
  • Lens Style: Rectangle with Flat Top
  • Millicandela Rating (Green): 90mcd
  • Millicandela Rating (Red): 10mcd
  • Dominant Wavelength (Green): 525nm
  • Peak Wavelength (Green): 515nm
  • Dominant Wavelength (Red): 630nm
  • Peak Wavelength (Red): 645nm
  • Forward Voltage (Green): 2.7V @ 2mA
  • Forward Voltage (Red): 1.8V @ 2mA
