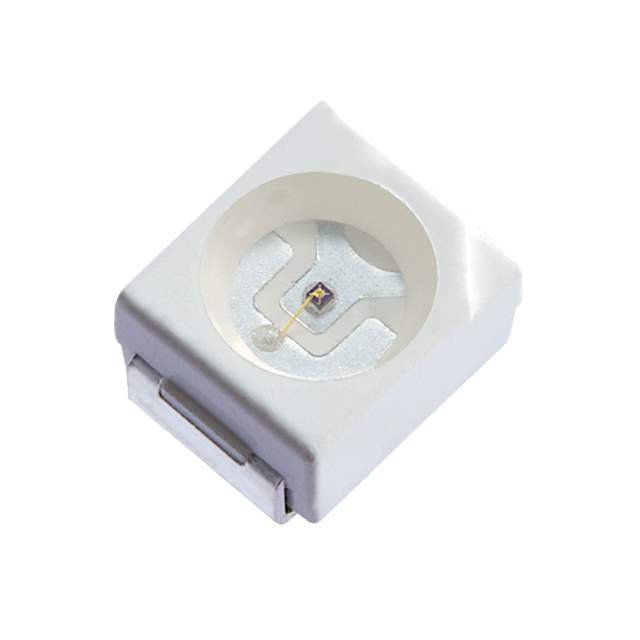

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr Kingbright
Package Tape & Reel
Color Red
Configuration Independent
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 350mcd
Lens Style Round with Flat Top
Lens Size 2.40mm Dia
Voltage - Forward (Vf) (Typ) 1.95V
Current - Test 20mA
Viewing Angle 120°
Mounting SMD (SMT)
Wavelength - Dominant 630nm
Wavelength - Peak 645nm
Package / Case 2-PLCC
Dimension 3.20mm L x 2.80mm W
Height (Max) 2.15mm
Base Product Number AA3528
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names 754-2076-1,754-2076-2,754-2076-6
Standard Package 2,000
Win Source Part Number 976982-AA3528SURCK
Ultra Librarian 3D Model Ultra Librarian AA3528SURCK CAD Model

Description

Kingbright's AA3528SURCK is an LED indication component with a viewing angle of 120 degrees and a millicandela rating of 350mcd.

  • Viewing Angle: 120 degrees
  • Millicandela Rating: 350mcd
  • Wavelength-Dominant: 630nm
  • Peak Wavelength: 645nm
  • Voltage-Forward (Vf): 1.95V
  • Current-Test: 20mA
  • Lens: colorless
  • Height: 2.15mm
  • Dimension: 3.20mm L x 2.80mm W
