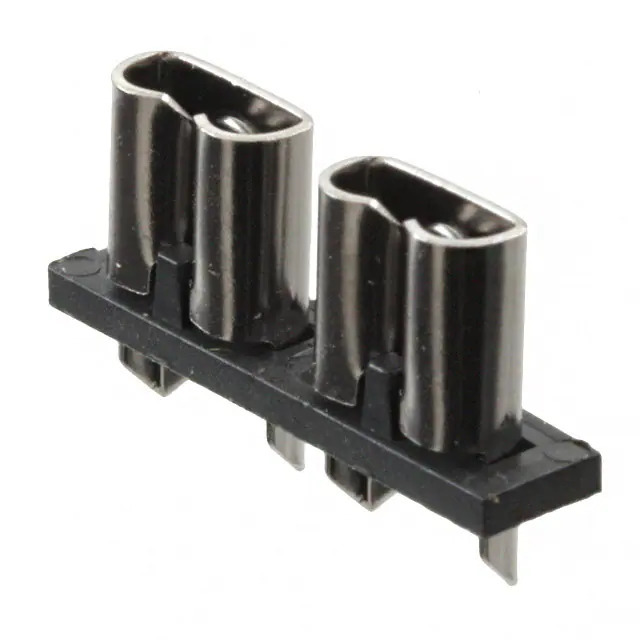

3522-2 Keystone Electronics
Same model may have multiple batches, images only for reference.

3522-2

Part No 3522-2
Manufacturer Keystone Electronics
Catalog Fuseholders
Description FUSE CLIP BLADE 500V 20A PCB / Fuse Block 20 A 500V 1 Circuit Blade Through Hole
Datasheet
3522-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Fuseholders
Mfr Keystone Electronics
Series -
Package Bulk
Product Status Active
Mounting Type Through Hole
Fuse Size 0.75" L x 0.2" W (19.1mm x 5.1mm)
Current Rating (Amps) 20 A
For Use With/Related Products ATC, ATO
Fuse Type Blade
Fuseholder Type Block
Number of Circuits 1
Voltage 500V
Orientation Vertical
Termination Style PC Pin
Contact Material Brass
Contact Finish Tin Nickel
Approval Agency UL
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8538.90.8180
Win Source Part Number 1361483-3522-2
Ultra Librarian 3D Model Ultra Librarian 3522-2 CAD Model

Description

The Keystone Electronics Fuseholder is a high-quality circuit protection component.

  • Manufacturer: Keystone Electronics
  • Current Rating: 20 amps
  • Fuse Type: ATC, ATO
  • Orientation: Vertical
  • Mounting Type: Through Hole
  • Contact Finish: Tin Nickel
  • Contact Material: Brass
  • Approval: UL
  • Voltage: Up to 500V
  • Length: 0.75 inches (19.1mm)
  • Width: 0.2 inches (5.1mm)
