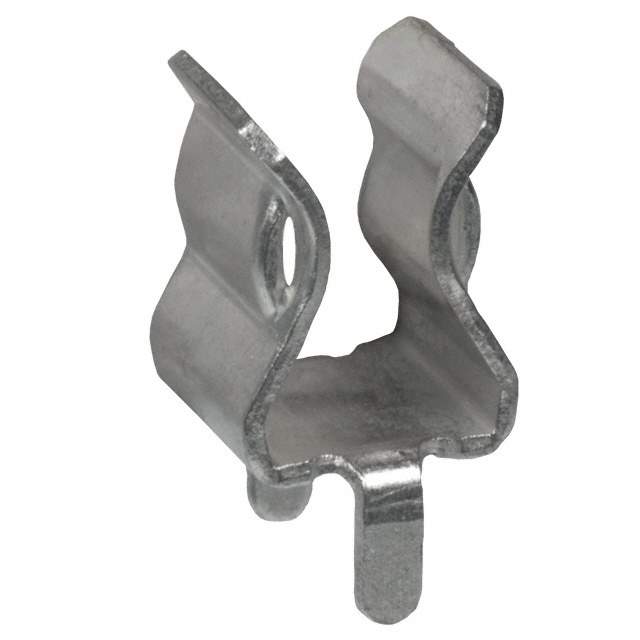

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Body Material Brass
Contact Material Brass
Contact Plating Tin
Current Rating 15 A
Fuse Current 15 A
Height 8.73 mm
Lead Free Lead Free
Length 6.25 mm
Material Brass
Mount Horizontal, PCB
Number of Circuits 1
Orientation Horizontal
Packaging Bulk
REACH SVHC No SVHC
RoHS Compliant
Termination PC Pin
Width 6.35 mm
Win Source Part Number 1206239-3517
Categories Fuseholders
Manufacturer Keystone Electronics
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 3517 CAD Model

Description

The Keystone Electronics 3517 is a fuseholder from Keystone Electronics.

  • Current Rating: 15 A
  • Contact Material: Brass
  • Contact Plating: Tin
  • Body Material: Brass
  • Length: 6.25 mm
  • Height: 8.73 mm
  • Width: 6.35 mm
  • Orientation: Horizontal
  • Mounting: PCB
  • Lead-Free: Yes
  • RoHS Compliant: Yes
