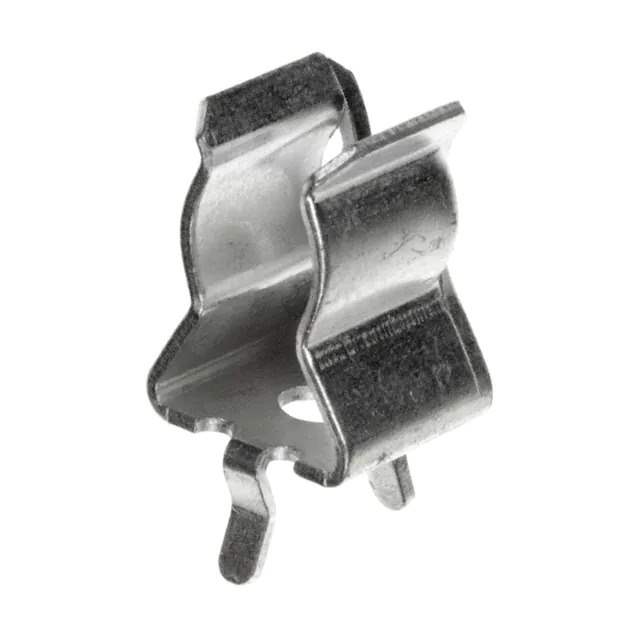

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Circuit Protection - Fuseholders
Mfr Keystone Electronics
Series 3500
Package Bulk
Product Status Active
Mounting Type Through Hole
Fuse Size 0.25" Dia (6.35mm)
Current Rating (Amps) 20 A
For Use With/Related Products 1/4" Dia Fuses
Fuse Type Cartridge
Fuseholder Type Clip
Number of Circuits 1
Orientation Horizontal and Vertical
Termination Style PC Pin
Contact Material Brass
Contact Finish Tin
Approval Agency UL
Standard Package 100 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8538.90.8180
Win Source Part Number 545573-3500
Ultra Librarian 3D Model Ultra Librarian 3500 CAD Model

Description

The 545573-3500 is a fuseholder from Keystone Electronics.

  • Termination Style: PC pin
  • Contact Finish: Tin
  • Fuse Diameter: 1/4"
  • Current Rating: 20A
  • Mounting: Through hole
  • Orientation: Horizontal and vertical
  • Standard Package: 100 pcs
  • Application: Circuit protection
  • Win Source Part Number: 545573-3500
