Same model may have multiple batches, images only for reference.

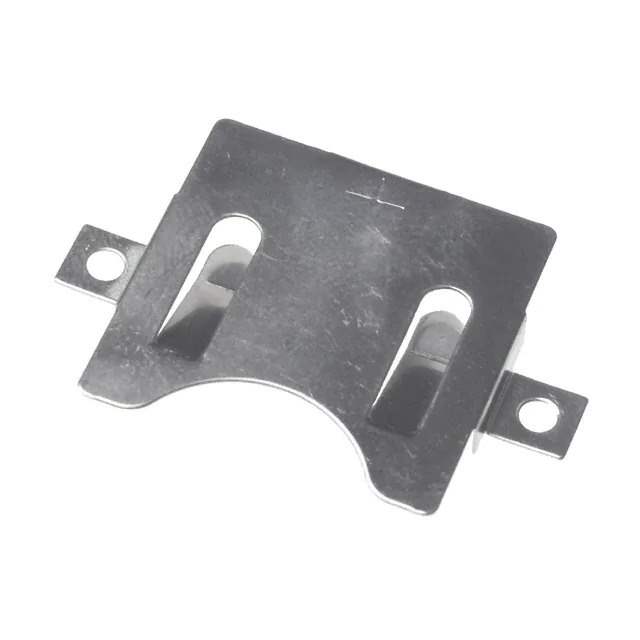

3004 Real Image
Same model may have multiple batches, images only for reference.

3004

Part No 3004
Manufacturer Keystone Electronics
Catalog Battery Holders, Clips, Contacts
Description BATT RETAINER COIN 23MM 1CEL SMD
Datasheet
3004 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Battery Products - Battery Holders, Clips, Contacts
Mfr Keystone Electronics
Package Bulk
Product Status Active
Battery Type, Function Coin Cell, Retainer
Style Retainer
Battery Cell Size Coin, 23.0mm
Number of Cells 1
Battery Series 2320, 2325, 2330
Mounting Type PCB, Surface Mount
Termination Style SMD (SMT) Tab
Height Above Board 0.156" (3.96mm)
Standard Package 100 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 906476-3004
Ultra Librarian 3D Model Ultra Librarian 3004 CAD Model

Description

The 906476-3004 is a coin cell retainer designed for use in battery holders, clips, and contacts.

  • Suitable for: Coin cell batteries with a size of 23.0mm
  • Termination Style: SMD (SMT) tab
  • Provides: A secure and reliable connection
  • Mounting: Surface mount on a PCB
  • Suitable for: Various electronic devices and equipment
  • Accommodates: A single battery cell
  • Compatible with: Different series of coin cell batteries, including 2320, 2325, and 2330
  • Manufacturer: Keystone Electronics
  • For: Professional project or a DIY electronics project
  • Essential component for: Battery-related applications
