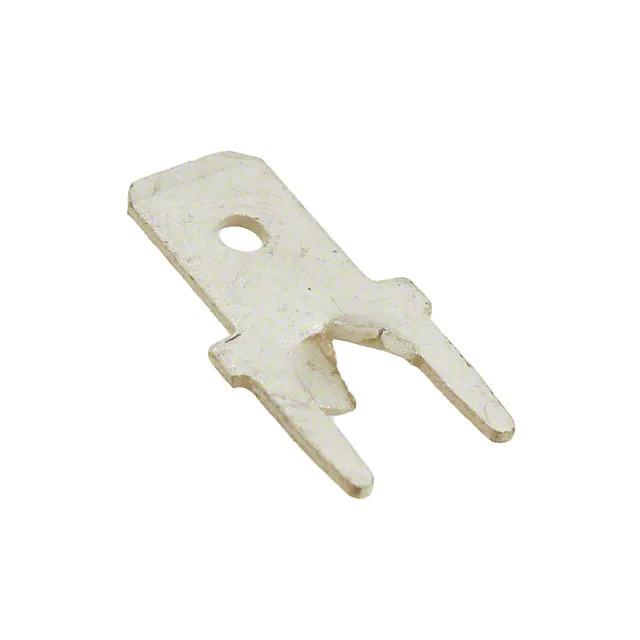

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - Quick Connects, Quick Disconnect Connectors
Mfr Keystone Electronics
Series -
Package Bulk
Product Status Active
Terminal Type Standard
Gender Male
Tab Width 0.187" (4.75mm)
Tab Thickness 0.020" (0.51mm)
Tab Length 0.250" (6.35mm)
Length - Overall 0.510" (12.95mm)
Termination Solder
Wire Gauge -
Insulation Non-Insulated
Mounting Type Through Hole
Features -
Color -
Contact Material Brass
Contact Finish Tin
Insulation Diameter -
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1364779-1285-ST
Ultra Librarian 3D Model Ultra Librarian 1285-ST CAD Model

Description

The Keystone Electronics 1364779-1285-ST is a male quick disconnect connector designed for use in various electronic applications.

  • Mounting Type: Through Hole
  • Material: Brass
  • Tab Width: 0.187" (4.75mm)
  • Tab Thickness: 0.020" (0.51mm)
  • Tab Length: 0.250" (6.35mm)
  • Insulation: Non-Insulated
  • Contact Finish: Tin
  • Overall Length: 0.510" (12.95mm)
  • Termination: Solder
  • Category: Connectors, Interconnects, and Terminals
  • Product Status: Active
  • Package: Bulk
  • REACH: Unaffected
  • Series: Keystone Electronics
  • ECCN: EAR99
