Same model may have multiple batches, images only for reference.

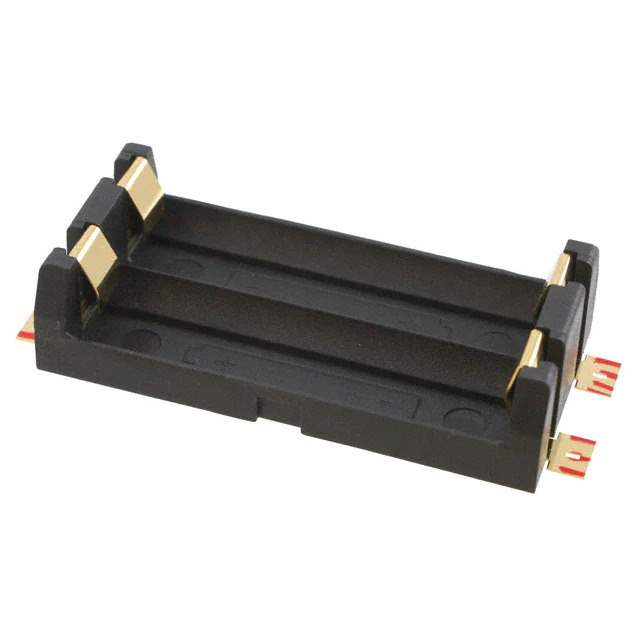

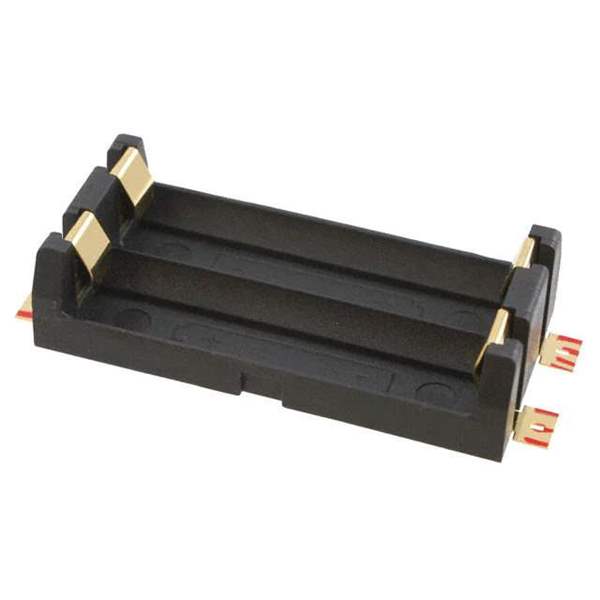

1012 Real Image
Same model may have multiple batches, images only for reference.

1012

Part No 1012
Manufacturer Keystone Electronics
Catalog Battery Holders, Clips, Contacts
Description BATT HOLDER AA 2 CELL SMD
Datasheet
1012 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Battery Products - Battery Holders, Clips, Contacts
Mfr Keystone Electronics
Package Bulk
Product Status Active
Battery Type, Function Cylindrical, Holder
Style Holder (Open)
Battery Cell Size AA
Number of Cells 2
Mounting Type PCB, Surface Mount
Termination Style SMD (SMT) Tab
Height Above Board 0.585" (14.86mm)
Temperature Range - Operating -50°C ~ 145°C
Standard Package 100 pcs
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 538290-1012
Ultra Librarian 3D Model Ultra Librarian 1012 CAD Model

Description

The Battery Holder (Open) is a convenient electronic component designed for holding two AA batteries.

  • Category: Battery Products - Battery Holders, Clips, Contacts
  • Manufacturer: Keystone Electronics
  • Termination Style: Surface Mount
  • Mounting: PCB
  • Height Above Board: 0.585"
  • Package: Bulk of 100 pieces
  • Battery Compatibility: AA
  • Temperature Range: -50°C to 145°C
