Same model may have multiple batches, images only for reference.

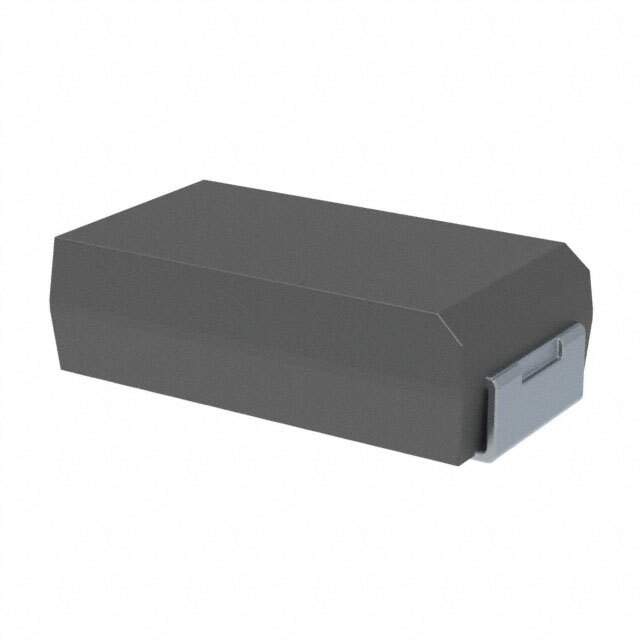

T520L337M2R5ATE025 Real Image
Same model may have multiple batches, images only for reference.

T520L337M2R5ATE025

Part No T520L337M2R5ATE025
Manufacturer Kemet
Catalog Tantalum - Polymer Capacitors
Description CAP TANT POLY 330UF 2.5V 2312 / Cap Tant Polymer 330uF 2.5VDC L CASE 20% (6 X 3.2 X 1.8mm) SMD 6032-19 0.025 Ohm 105°C T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Kemet
Series KO-CAP T520
Packaging Reel package
Capacitance 330μF
Tolerance ±20%
Voltage Rating DC 2.5V
Type Molded
ESR (Equivalent Series Resistance) 25 mOhm
Operating Temperature Range -55°C ~ 105°C
Lifetime @ Temp. 2000 Hrs @ 105°C
Mounting SMD
Package 2312
Dimension 0.236" L x 0.126" W (6.00mm x 3.20mm)
Height - Seated (Maximum) 0.075" (1.90mm)
Manufacturer Size Code L
Features General
Win Source Part Number 796145-T520L337M2R5ATE025
Popularity Medium
Supply and Demand Status Balance
Family Name T520
Introduction Date September 26, 2011
ECCN EAR99
Country of Origin United States of America
Estimated EOL Date 2030
Ultra Librarian 3D Model Ultra Librarian T520L337M2R5ATE025 CAD Model

Description

The Kemet T520L337M2R5ATE025 is a molded type capacitor that comes in a reel package. Kemet

  • Capacitance: 330μF
  • Tolerance: ±20%
  • ESR: 25 mOhm
  • Voltage Rating DC: 2.5V
  • Series: KO-CAP T520
  • Manufacturer Size Code: L
  • Package: 2312
  • Dimension: 0.236" L x 0.126" W (6.00mm x 3.20mm)
  • Operating Temperature Range: -55°C to 105°C
  • Lifetime: 2000 Hrs @ 105°C
  • Family: T520
  • Category: Capacitors
  • Supply and Demand Status: Balanced
