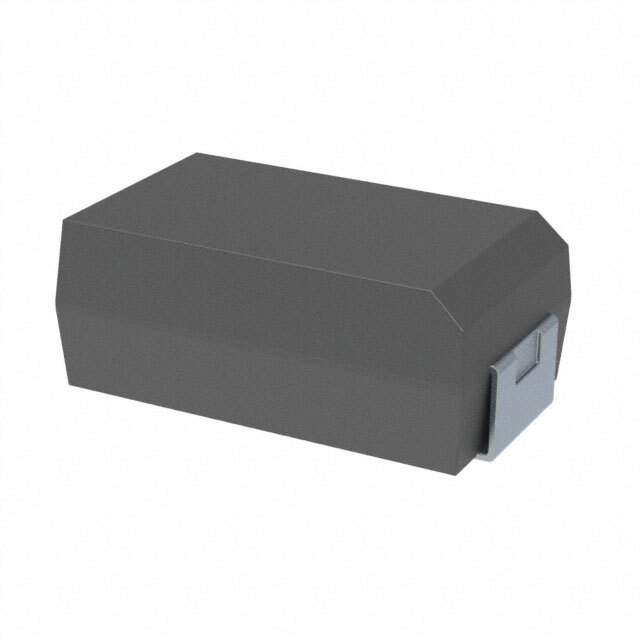

Same model may have multiple batches, images only for reference.

T520D477M2R5ATE006

Name: T520D477M2R5ATE006
Brand: Kemet
SKU: 796143
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	T520D477M2R5ATE006
Manufacturer	Kemet
Catalog	Tantalum - Polymer Capacitors
Description	CAP TANT POLY 470UF 2.5V 2917 / Cap Tant Polymer 470uF 2.5VDC D CASE 20% (7.3 X 4.3 X 2.8mm) SMD 7343-31 0.006 Ohm 105°C T/R
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Capacitors
Manufacturer	Kemet
Series	KO-CAP T520
Packaging	Reel package
Capacitance	470μF
Tolerance	±20%
Voltage Rating DC	2.5V
Type	Molded
ESR (Equivalent Series Resistance)	6 mOhm
Operating Temperature Range	-55°C ~ 105°C
Lifetime @ Temp.	2000 Hrs @ 105°C
Mounting	SMD
Package	2917 (7343 Metric)
Dimension	0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Maximum)	0.122" (3.10mm)
Manufacturer Size Code	D
Features	General
Win Source Part Number	796143-T520D477M2R5ATE006
Popularity	Medium
Supply and Demand Status	Limited
Family Name	T520
Introduction Date	September 26, 2011
ECCN	EAR99
Country of Origin	China
Halogen Free	Compliant
Estimated EOL Date	2030
Ultra Librarian 3D Model	Ultra Librarian T520D477M2R5ATE006 CAD Model

Description

The 796143-T520D477M2R5ATE006 is a capacitor used for various electronic devices.

Series: KO-CAP T520
Package: Reel
Operating Temperature Range: -55°C ~ 105°C
Capacitance: 470μF
Tolerance: ±20%
ESR (Equivalent Series Resistance): 6 mOhm
Lifetime: 2000 Hrs @ 105°C
Voltage Rating DC: 2.5V
Dimension: 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height Seated (Maximum): 0.122" (3.10mm)
Alternative Parts (Cross-Reference): NTP477M2.5TRV(12)F, NTP477M2.5TRV(15)F, 2R5TPD470M5, TCJD477M002S0040
Introduction Date: September 26, 2011
ECCN: EAR99
Country of Origin: China
Estimated EOL Date: 2030
Halogen-Free: Yes
