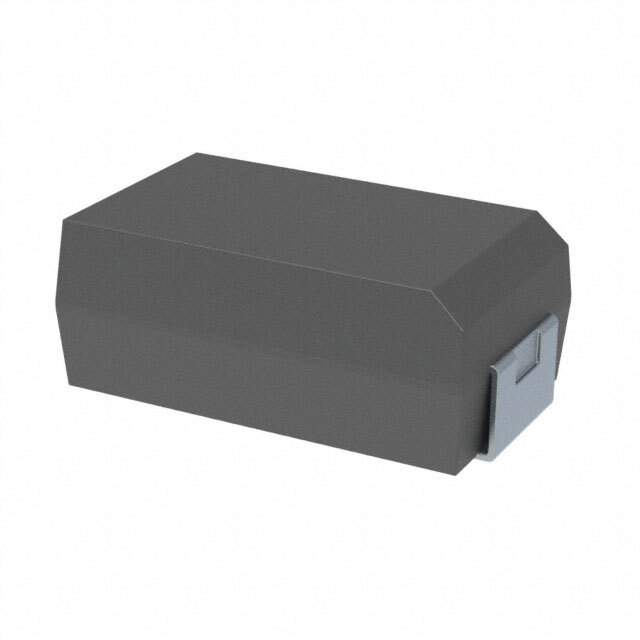

T520D227M010ATE025 Real Image
Same model may have multiple batches, images only for reference.

T520D227M010ATE025

Part No T520D227M010ATE025
Manufacturer Kemet
Catalog Tantalum - Polymer Capacitors
Description Polymer Tantalum Capacitors 220UF 10V 2917 / Cap Tant Polymer 220uF 10VDC D CASE 20% (7.3 X 4.3 X 2.8mm) SMD 7343-31 0.025 Ohm 105°C T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Kemet
Packaging Reel - TR
Status Active
Capacitance 220μF
Tolerance ±20%
Voltage Rating 10V
Type Molded
ESR 25 mOhm
Temperature Range - Operating -55°C to 105°C
Lifetime @ Temp. 2000 Hrs @ 105°C
Mounting SMD (SMT)
Dimension 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) 0.122" (3.10mm)
Manufacturer Size Code D
Features General Purpose
Win Source Part Number 047649-T520D227M010ATE025
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name T520
Introduction Date September 26, 2011
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2030
Ultra Librarian 3D Model Ultra Librarian T520D227M010ATE025 CAD Model

Description

The KEMET T520D227M010ATE025 is a molded tantalum capacitor with a capacitance of 220μF and a voltage rating of 10V.

  • Capacitance: 220μF
  • Voltage Rating: 10V
  • Mounting Type: Surface-Mount
  • Height: 0.122 inches
  • Manufacturer Size Code: D
  • ESR: 25mOhm
  • Tolerance: ±20%
  • Operating Temperature Range: -55°C to 105°C
  • Lifetime: 2000 hours @ 105°C
