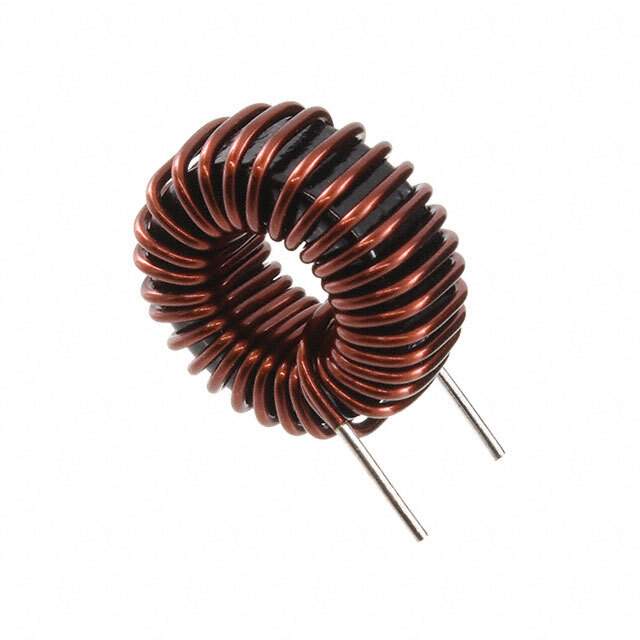

SNT-D20TF Real Image
Same model may have multiple batches, images only for reference.

SNT-D20TF

Part No SNT-D20TF
Manufacturer Kemet
Catalog Common Mode Chokes
Datasheet
SNT-D20TF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SNT
Filter Type Signal Line
Number of Lines 2
Inductance @ Frequency 10 µH @ 100 kHz
Current Rating (Max) 1.5A
DC Resistance (DCR) (Max) 45Ohm
Temperature Range - Operating -20°C ~ 60°C
Mounting Type Through Hole
Dimension 0.374" L x 0.236" W (9.50mm x 6.00mm)
Height (Max) 0.500" (12.70mm)
Package / Case Vertical, 2 PC Pin
Base Product Number SNT-D
Other Names 399-SNT-D20TFTB,UDLSNT0D20TF00
Standard Package 500
MSL Level Not Applicable
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1276812-SNT-D20TF
Ultra Librarian 3D Model Ultra Librarian SNT-D20TF CAD Model

Description

The KEMET SNT-D20TF00 Common Mode Choke is a signal line filter with a maximum current rating of 1.5A.

  • Standard Package: 500
  • Filter Type: Signal line filter
  • Lines: Two
  • Inductance: 10 µH @ 100 kHz
  • Package: Vertical, 2 PC pin package/case
  • Mounting Type: Through-hole
  • Temperature Range: -20°C to 60°C
  • Dimension: 0.374 inches in length and 0.236 inches in width
