Same model may have multiple batches, images only for reference.

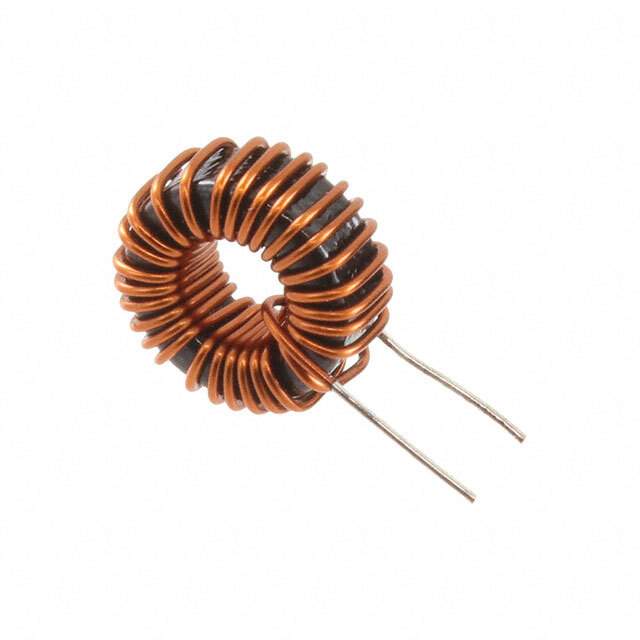

SHBC8S-0R6A0024V Real Image
Same model may have multiple batches, images only for reference.

SHBC8S-0R6A0024V

Part No SHBC8S-0R6A0024V
Manufacturer Kemet
Catalog Fixed Inductors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr KEMET
Series SHBC
Package Bulk
Type Toroidal
Material - Core Alloy Powder
Inductance 24 µH
Tolerance ±20%
Current Rating (Amps) 2 A
Shielding Unshielded
DC Resistance (DCR) 41.1mOhm Max
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Through Hole
Package / Case Radial, Vertical (Open)
Supplier Device Package Radial
Dimension 0.630" Dia (16.00mm)
Height - Seated (Max) 0.630" (16.00mm)
Base Product Number SHBC8S
Other Names 399-19131,UALS8S0R6A0024
Standard Package 700
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1272743-SHBC8S-0R6A0024V
Ultra Librarian 3D Model Ultra Librarian SHBC8S-0R6A0024V CAD Model

Description

This is a toroidal fixed inductor from KEMET that belongs to the inductors, coils, and chokes category.

  • Win Source Part Number: 1272743-SHBC8S-0R6A0024V
  • Standard Package: 700 units
  • Tolerance: ±20%
  • Core Material: Alloy powder
  • Mounting Type: Through-hole
  • Package/Case: Radial, vertical (open)
  • DC Resistance (DCR): 41.1mOhm Max
  • Current Rating: 2 A
  • REACH Regulations: Not affected
