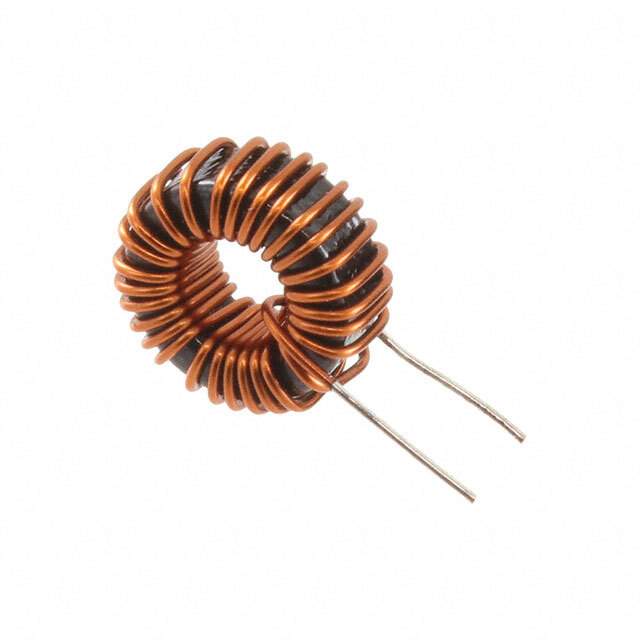

SHBC12-1R0A0080V Real Image
Same model may have multiple batches, images only for reference.

SHBC12-1R0A0080V

Part No SHBC12-1R0A0080V
Manufacturer Kemet
Catalog Fixed Inductors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr KEMET
Series SHBC
Package Bulk
Type Toroidal
Material - Core Alloy Powder
Inductance 80 µH
Tolerance ±20%
Current Rating (Amps) 5 A
Shielding Unshielded
DC Resistance (DCR) 35.6mOhm Max
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Through Hole
Package / Case Radial, Vertical (Open)
Supplier Device Package Radial
Dimension 1.039" Dia (26.40mm)
Height - Seated (Max) 1.039" (26.40mm)
Base Product Number SHBC12
Other Names 399-19139,UALS121R0A0080
Standard Package 240
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1272733-SHBC12-1R0A0080V
Ultra Librarian 3D Model Ultra Librarian SHBC12-1R0A0080V CAD Model

Description

The SHBC series toroidal fixed inductor is ideal for use in a variety of applications. With an inductance of 80 µH and a tolerance of ±20%, this inductor has a DC resistance (DCR) of 35.6mOhm Max. The inductor is shielded and mounted using through-hole mounting. The package is bulk and the standard package is 240. The inductor is ECCN: EAR99 and REACH unaffected. The HTSUS code is 8504.50.8000. The inductor is manufactured by KEMET.
