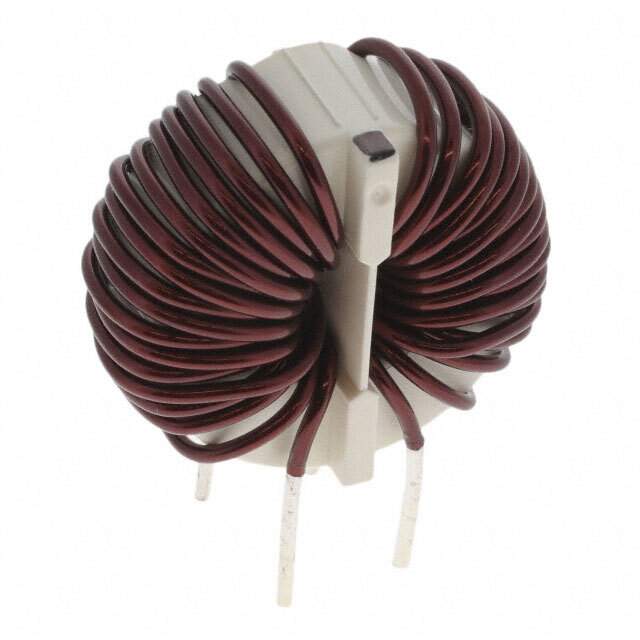

SC-15-201 Real Image
Same model may have multiple batches, images only for reference.

SC-15-201

Part No SC-15-201
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SC
Package Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 2 mH @ 100 kHz
Current Rating (Max) 15A
DC Resistance (DCR) (Max) 12mOhm
Voltage Rating - DC 250V
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Dimension 1.929" Dia (49.00mm)
Height (Max) 1.929" (49.00mm)
Package / Case Vertical, No Base, 4 PC Pin
Base Product Number SC-15
Other Names UALSC152010000,399-SC-15-201
Standard Package 60
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1277067-SC-15-201
Ultra Librarian 3D Model Ultra Librarian SC-15-201 CAD Model

Description

The KEMET SC-15-201 is a common mode choke filter designed to reduce electromagnetic interference (EMI) in power line applications.

  • Maximum AC and DC Voltage Rating: 250V
  • Maximum Current Rating: 15A
  • Package Type: Bulk
  • Mounting Type: Through Hole
  • Standard Package: 60
  • Filter Type: Power Line
  • Height: 1.929 inches
  • Dimension: 1.929 inches in diameter
  • Temperature Range: -25°C to 120°C
  • Inductance: 2mH @ 100kHz
  • DC Resistance: 12mOhm
