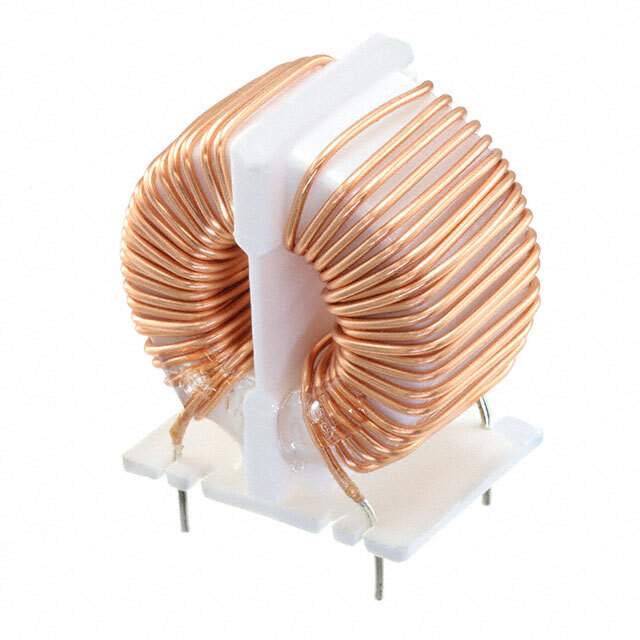

SC-05-20J Real Image
Same model may have multiple batches, images only for reference.

SC-05-20J

Part No SC-05-20J
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SC
Package Tray
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 2 mH @ 100 kHz
Current Rating (Max) 5A
DC Resistance (DCR) (Max) 70mOhm
Voltage Rating - DC 250V
Voltage Rating - AC 250V
Temperature Range - Operating 25°C ~ 120°C
Mounting Type Through Hole
Dimension 1.339" L x 0.906" W (34.00mm x 23.00mm)
Height (Max) 1.299" (33.00mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SC-05
Other Names 399-SC-05-20J
Standard Package 50
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1276986-SC-05-20J
Ultra Librarian 3D Model Ultra Librarian SC-05-20J CAD Model

Description

The SC-05-20J is a common mode choke manufactured by KEMET.

  • Category: Filters
  • Subcategory: Common Mode Chokes
  • Voltage Rating: 250V AC and 250V DC
  • Maximum Current Rating: 5A
  • Package: Vertical, 4 PC pin
  • Standard Package: 50
  • Commonly Used in: Electronic devices like power supplies, inverters, and converters
  • Low DC Resistance: 70mOhm
  • Inductance: 2mH @ 100 kHz
  • Operating Temperature Range: 25°C to 120°C
  • Reliable and Efficient Solution: For power line filtering in electronic devices.
