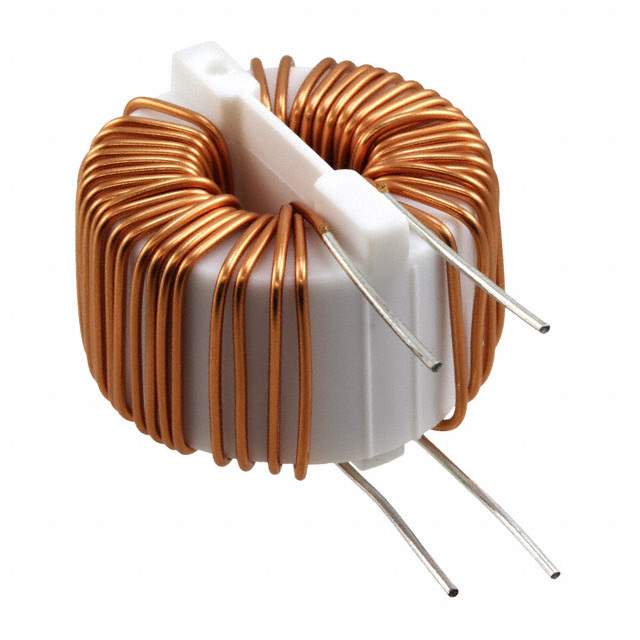

SC-05-200 Real Image
Same model may have multiple batches, images only for reference.

SC-05-200

Part No SC-05-200
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SC
Package Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 2 mH @ 100 kHz
Current Rating (Max) 5A
DC Resistance (DCR) (Max) 70mOhm
Voltage Rating - DC 250V
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 105°C
Mounting Type Through Hole
Dimension 1.260" Dia x 0.866" W (32.00mm x 22.00mm)
Height (Max) 1.260" (32.00mm)
Package / Case Vertical, No Base, 4 PC Pin
Base Product Number SC-05
Other Names 399-10611,UALSC052000000
Standard Package 200
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.4065
Win Source Part Number 1277060-SC-05-200
Ultra Librarian 3D Model Ultra Librarian SC-05-200 CAD Model

Description

The SC-05-200 is a common mode choke filter manufactured by KEMET.

  • Maximum Current Rating: 5A
  • Voltage Rating: 250V AC/DC
  • Package Type: Bulk
  • Standard Package: 200 pieces
  • Filter Type: Power Line
  • Height: 1.260 inches (32.00mm)
  • Lines: 2
  • Inductance @ Frequency: 2 mH @ 100 kHz
  • DC Resistance (DCR): 70mOhm
  • Mounting Type: Through Hole
  • Package/Case: Vertical, no base, 4 PC pin
  • Temperature Range: -25°C to 105°C
  • Win Source Part Number: 1277060-SC-05-200
