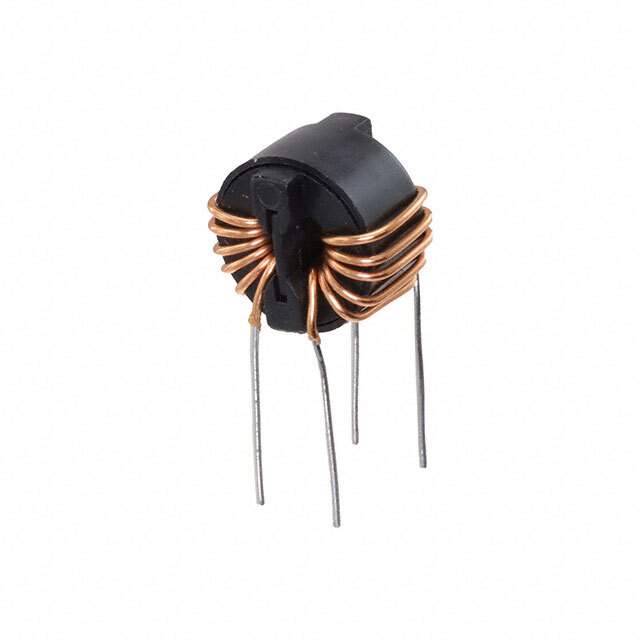

SC-03-E016G Real Image
Same model may have multiple batches, images only for reference.

SC-03-E016G

Part No SC-03-E016G
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SC
Package Tray
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 163.8 µH @ 10 kHz
Current Rating (Max) 3A
DC Resistance (DCR) (Max) 8.51mOhm
Voltage Rating - DC 250V
Voltage Rating - AC 250V
Temperature Range - Operating 25°C ~ 120°C
Mounting Type Through Hole
Dimension 0.689" L x 0.551" W (17.50mm x 14.00mm)
Height (Max) 0.669" (17.00mm)
Package / Case Vertical, No Base, 4 PC Pin
Base Product Number SC-03
Other Names UALSC03E016G00,399-SC-03-E016G
Standard Package 550
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1276991-SC-03-E016G
Ultra Librarian 3D Model Ultra Librarian SC-03-E016G CAD Model

Description

The SC-03-E016G is a common mode choke designed by KEMET.

  • Voltage Rating: 250V
  • Current Rating: 3A
  • Used to: Suppress electromagnetic interference (EMI) in power lines
  • Inductance: 163.8 µH @ 10 kHz
  • DC Resistance: 8.51mOhm
  • Package: Vertical, no base, 4 PC pin package
  • Operating Temperature: 25°C to 120°C
