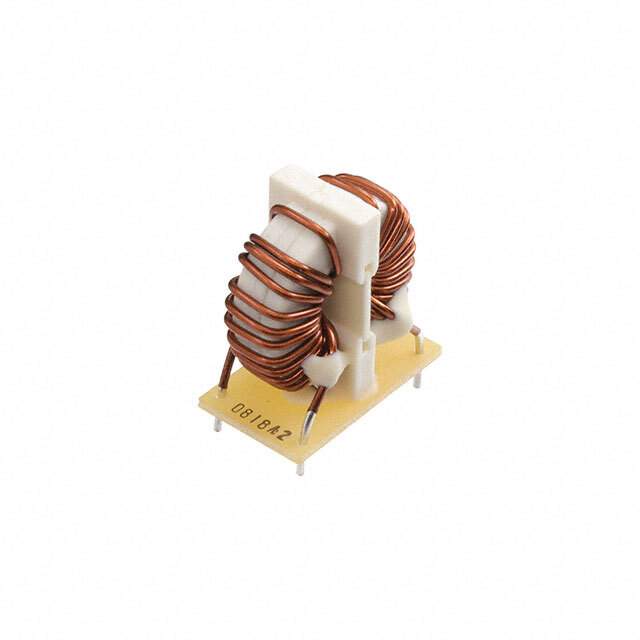

SC-08-E075J Real Image
Same model may have multiple batches, images only for reference.

SC-08-E075J

Part No SC-08-E075J
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SC
Package Tray
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 750 µH @ 10 kHz
Current Rating (Max) 8A
DC Resistance (DCR) (Max) 12.7mOhm
Voltage Rating - DC 250V
Voltage Rating - AC 250V
Temperature Range - Operating 25°C ~ 120°C
Mounting Type Through Hole
Dimension 0.984" L x 0.630" W (25.00mm x 16.00mm)
Height (Max) 1.004" (25.50mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SC-08
Other Names 399-SC-08-E075J,UALSC08E075J00
Standard Package 150
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1276938-SC-08-E075J
Ultra Librarian 3D Model Ultra Librarian SC-08-E075J CAD Model

Description

This electronic component is a product of KEMET with a Win Source Part Number of 1276938-SC-08-E075J.

  • Voltage Rating: 250V AC and DC
  • Maximum Current Rating: 8A
  • Standard Package: 150
  • Height: 1.004" (25.50mm)
  • Lines: Two
  • Inductance: 750 µH @ 10 kHz
  • DC Resistance (DCR): 12.7mOhm
  • Mounting: Through hole
  • Package/Case: Vertical, 4 PC pin
  • Operating Temperature Range: 25°C to 120°C
