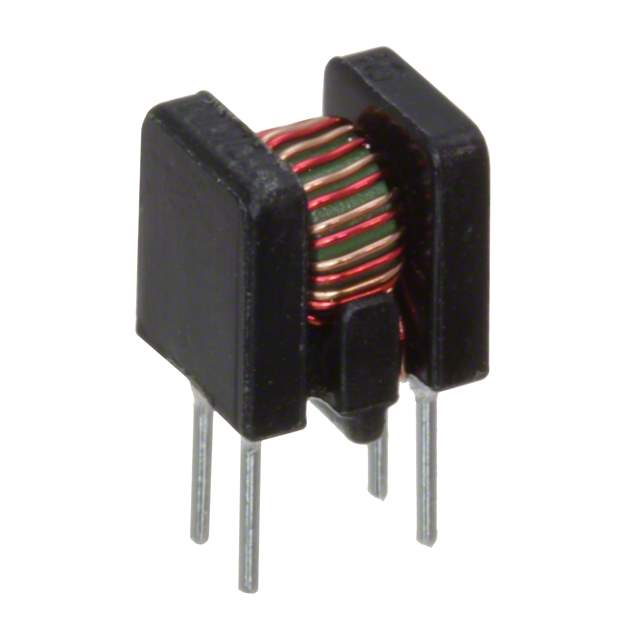

SBT-0140W Real Image
Same model may have multiple batches, images only for reference.

SBT-0140W

Part No SBT-0140W
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SBT-01W
Package Bulk
Filter Type Signal Line
Number of Lines 2
Inductance @ Frequency 40 µH @ 1 kHz
Current Rating (Max) 500mA
DC Resistance (DCR) (Max) 40mOhm
Voltage Rating - DC 50V
Temperature Range - Operating -25°C ~ 70°C
Mounting Type Through Hole
Height (Max) 0.354" (9.00mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SBT-014
Other Names UDLSBTW0140W00,399-19649
Standard Package 1,000
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1277099-SBT-0140W
Ultra Librarian 3D Model Ultra Librarian SBT-0140W CAD Model

Description

The Kemet SBT-0140W is a common mode choke that is used in signal line filter applications.

  • Series: SBT-01W
  • Voltage Rating: 50V
  • Current Rating: 500mA
  • Height: 0.354" (9.00mm)
  • Lines: 2
  • Inductance: 40 µH @ 1 kHz
  • DC Resistance (DCR): 40mOhm
  • Status: Active
  • Standard Package: 1,000
  • ECCN: EAR99
  • Temperature: -25°C ~ 70°C
  • Package/Case: Vertical, 4 PC pin
  • HTSUS: 8548.00.0000
